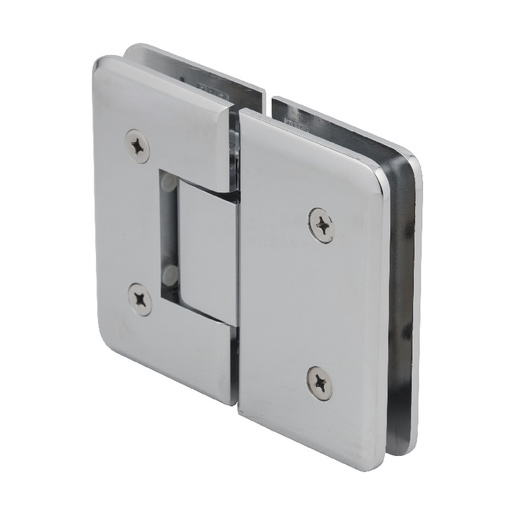

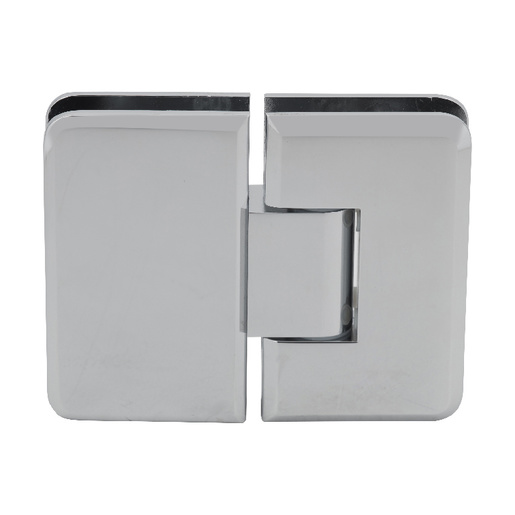

CRL Chrome 180 Degree Glass-to-Glass Plymouth Series Hinge

  Item number 31M8015BTCH was replaced by item number PLY180CH.
Item #: PLY180CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Chrome 180 Degree Glass-to-Glass Plymouth Series Hinge
×
CRL Chrome 180 Degree Glass-to-Glass Plymouth Series Hinge
Quantity Standard Price Sale Price Your Price
CRL Chrome 180 Degree Glass-to-Glass Plymouth Series Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 72
Dallas, Texas 7/30/2024
Chicago (Elgin), Illinois 7/30/2024
San Francisco/Oakland (Union City), California 8/1/2024
Atlanta, Georgia 7/30/2024
New York Area (Secaucus, New Jersey) 7/30/2024
Boston (Taunton), Massachusetts 8/5/2024
Orlando, Florida 1
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 7/30/2024
Cleveland (Solon), Ohio 7/30/2024
Philadelphia Area (Moorestown, New Jersey) 8/2/2024
Phoenix, Arizona 8/1/2024
Las Vegas, Nevada 8/1/2024
Houston, Texas 7/30/2024
Miami, Florida 8/6/2024
San Diego, California 7/29/2024
Carolinas and Virginia, South Carolina 8/6/2024
Product details
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Chrome
  • Glass To Glass Angle
    180
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)

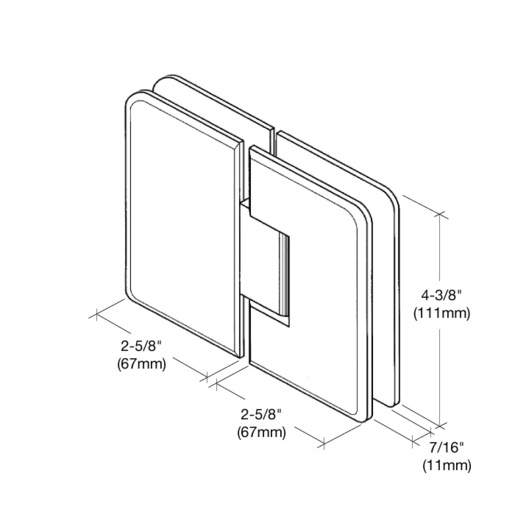

  • Height
    4-3/8 in. (111 mm)
  • Material
    Brass
  • Maximum Door Weight
    140 lbs. (63.5 kg)
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Self-Centering
    Yes
  • Series
    Plymouth
  • Width - Door Portion
    2-5/8 in. (67 mm)
  • Width - Sidelite Portion
    2-5/8
Product Overview
  • An Excellent Choice for Heavier, Wider Shower Doors
  • Integrated Safety Interlock Enhances Glass Panel Control
  • Wall Mount and 180 Degree Glass-to-Glass Models Available
  • For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass

CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.

NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
