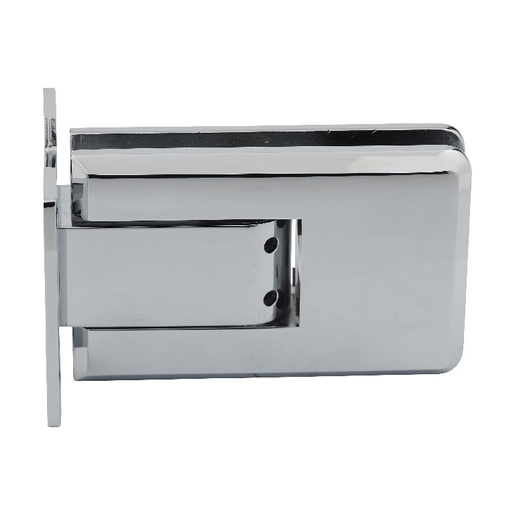

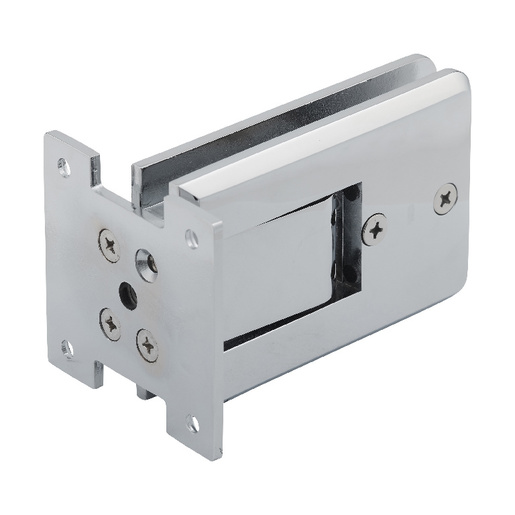

CRL Polished Chrome Atlas Glass Door Hinge

Finish/Color : Polished Chrome
Substitutions: H8010BTCH
Item #: ATL01CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 6.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Atlas Glass Door Hinge
×
CRL Polished Chrome Atlas Glass Door Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Atlas Glass Door Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 86
Dallas, Texas 31
Chicago (Elgin), Illinois 3
San Francisco/Oakland (Union City), California 2
Atlanta, Georgia 5
New York Area (Secaucus, New Jersey) 9
Boston (Taunton), Massachusetts 4
Orlando, Florida 7/23/2024
Denver, Colorado 2
Seattle (Kent), Washington 3
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 7/19/2024
Phoenix, Arizona 7/18/2024
Las Vegas, Nevada 7/18/2024
Houston, Texas 4
Miami, Florida 10
San Diego, California 7/17/2024
Carolinas and Virginia, South Carolina 2
Product details
  • Adjustable
    Yes
  • Back Plate
    Full
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    5/16 in. To 1/2 in. (8 mm To 12 mm)
  • Height
    3-9/16 in. (90 mm)
  • Material
    Brass
  • Maximum Door Weight
    140
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Atlas
  • Width
    5 7/8 in. (149 mm)
Product Overview
  • Self-Centering Function
  • Hold Open at 90 Degrees
  • Use Monolithic Tempered Glass
  • Easy to Set Closed Position
  • Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
  • Easy Closed Position Adjustment for Double Door or Inline Panel Applications
  • Four Architectural Finishes

This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).

The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.

The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.

NOTE: Do not exceed two Hinges per door.

Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
