CRL Matte Black Adjustable North American Top Door Patch Fitting

Item #: PH20CMBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Adjustable North American Top Door Patch Fitting
CRL Matte Black Adjustable North American Top Door Patch Fitting
Quantity Standard Price Sale Price Your Price
CRL Matte Black Adjustable North American Top Door Patch Fitting Stock
Los Angeles, California 769
Dallas, Texas 7/23/2024
Chicago (Elgin), Illinois 7/18/2024
San Francisco/Oakland (Union City), California 7
Atlanta, Georgia 18
New York Area (Secaucus, New Jersey) 27
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 7/30/2024
Denver, Colorado 7/23/2024
Seattle (Kent), Washington 7/23/2024
Cleveland (Solon), Ohio 7/23/2024
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 7/25/2024
Las Vegas, Nevada 7/25/2024
Houston, Texas 1
Miami, Florida 7/30/2024
San Diego, California 7/22/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Pivot Setback
  • Series
    North American
  • Type
Product Overview

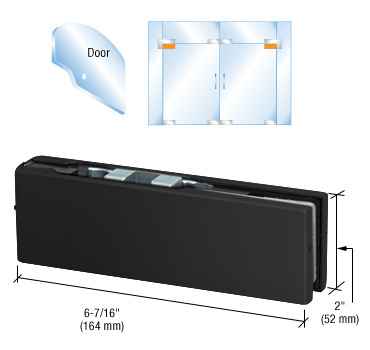

  • Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
  • 2-3/4" (70 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limitations, full door rails should be used.

One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH: Template and Instructions

DO NOT USE WITH:European 2-9/16" (65 mm) Pivot Setback Overhead Concealed Door Closers. They Require European Door Patch Fitting PH21C.

Product Warning:

These fittings are not for use with Laminated Glass.
