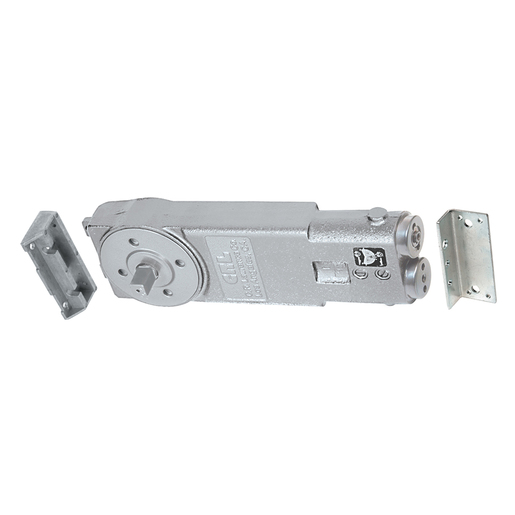

CRL A.D.A. 8.5 Lbs. Exterior 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips

Item #: CRL9970
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.17 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL A.D.A. 8.5 Lbs. Exterior 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips
×
CRL A.D.A. 8.5 Lbs. Exterior 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips
Quantity Standard Price Sale Price Your Price
CRL A.D.A. 8.5 Lbs. Exterior 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 318
Dallas, Texas 17
Chicago (Elgin), Illinois 13
San Francisco/Oakland (Union City), California 4
Atlanta, Georgia 15
New York Area (Secaucus, New Jersey) 18
Boston (Taunton), Massachusetts 4
Orlando, Florida 6
Denver, Colorado 2
Seattle (Kent), Washington 7
Cleveland (Solon), Ohio 5
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 10
Las Vegas, Nevada 4
Houston, Texas 7
Miami, Florida 17
San Diego, California 2
Carolinas and Virginia, South Carolina 4
Product details
  • Americans with Disabilities Act
    Yes
  • Body Height
    1-11/16
  • Body Length
    11-5/8
  • Body Width
    3-11/16
  • Case Quantity
    6
  • Closer Type
    Overhead Concealed
  • Door Height
    96
  • Handing
    Double Acting
  • Hold Open
    105°
  • Includes
    CRL8010FS
  • Maximum Door Weight
    200
  • Maximum Door Width - Exterior
    36 Inches
  • Maximum Door Width - Interior
    36 Inches
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Spindle
    3/4
  • Spring Size
    8.5
  • UL Listed
    Yes
Product Overview
  • Interchangeable with All Jackson® Style Overhead Concealed Door Closers
  • Extended 3/4" (19 mm) Long Spindle for Use with Patch Fittings and Door Rail Hardware
  • New Adjustable Models
  • UL Listed
  • Conveniently Packaged with Templates and Instructions

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails is A.D.A. Compliant at 8.5 lb. opening force for exterior doors and features a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No Hold Open models are available. Interchangeable with International, Jackson® and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.

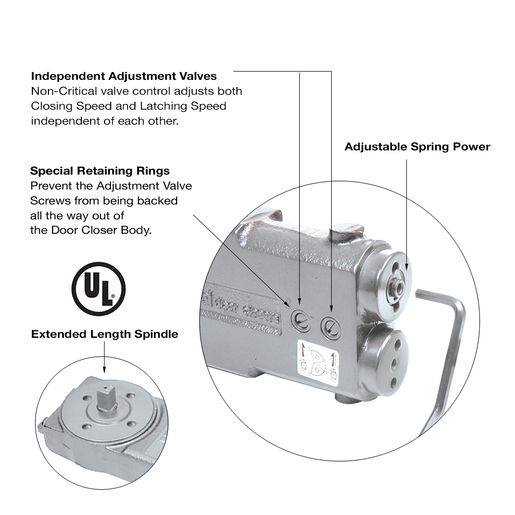

Extended Length Spindle
3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.

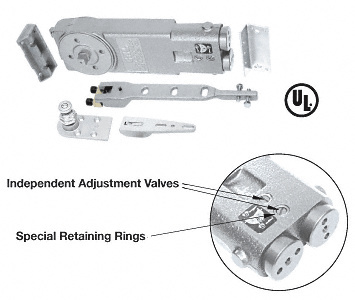

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Product Warning:

This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
