CRL Top Door Closer Patch Insert for Use with Door Closers with 9/16" Square Spindle

Item #: 1NT304
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 6.24 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Top Door Closer Patch Insert for Use with Door Closers with 9/16" Square Spindle
×
CRL Top Door Closer Patch Insert for Use with Door Closers with 9/16" Square Spindle
Quantity Standard Price Sale Price Your Price
CRL Top Door Closer Patch Insert for Use with Door Closers with 9/16" Square Spindle Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 7178
Dallas, Texas 85
Chicago (Elgin), Illinois 42
San Francisco/Oakland (Union City), California 19
Atlanta, Georgia 41
New York Area (Secaucus, New Jersey) 125
Boston (Taunton), Massachusetts 18
Orlando, Florida 17
Denver, Colorado 12
Seattle (Kent), Washington 83
Cleveland (Solon), Ohio 48
Philadelphia Area (Moorestown, New Jersey) 23
Phoenix, Arizona 2
Las Vegas, Nevada 8
Houston, Texas 25
Miami, Florida 38
San Diego, California 6
Carolinas and Virginia, South Carolina 20
Product details
  • Accepts Spindle Size
    9/16 in. (14 mm)
  • Includes
    Fasteners
Product Overview
  • For Use with PH20 and PH21 Top Door Patch Fittings
  • Suitable for use with Standard 9/16" (14 mm) Square Spindle Overhead Concealed Door Closers

The CRL Adjustable Top Door Patch Insert is suitable for use with all Transom Patch Fittings with No. 1NT300 Top Pivot Insert, No. 1NT401 Surface Mounted Top Pivot 1NT405 Threaded Top Pivot and CRL9040CP Walking Beam Pivot. This insert will accept any square pivot with 9/16" (14 mm) diameter.

INCLUDES:

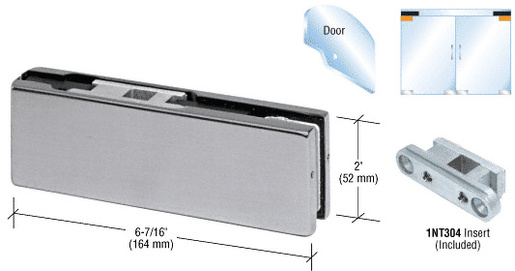

1 Each: 1NT304 Top Door Closer Patch Insert;
2 Each: Flat Head Hex Screws for Attaching Insert to the Top Door Patch

SPECIFICATIONS:
For Use With: PH20 and PH21 Top Door Patch Fittings
NOTE: Do not use with PH20C
Connects to: CRL, Jackson®, International, and Many Other Concealed Overhead Door Closers
Features: Two Piece Construction Allows for Front Loading of Door

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
Installation Instructions
