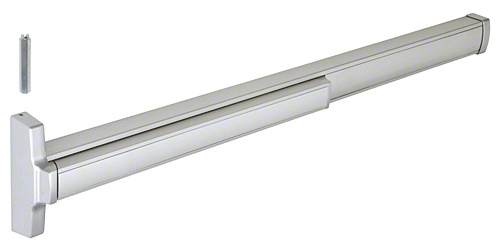

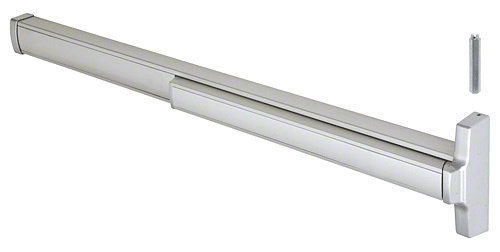

CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish

Finish/Color : Aluminum
Aluminum
Item #: 312086L47628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 11.38 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish
×
CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish
Quantity Standard Price Sale Price Your Price
CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 10
Dallas, Texas 6/3/2024
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 5/31/2024
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 6/3/2024
Boston (Taunton), Massachusetts 6/3/2024
Orlando, Florida 1
Denver, Colorado 6/4/2024
Seattle (Kent), Washington 6/4/2024
Cleveland (Solon), Ohio 6/3/2024
Philadelphia Area (Moorestown, New Jersey) 6/5/2024
Phoenix, Arizona 5/31/2024
Las Vegas, Nevada 5/31/2024
Houston, Texas 6/3/2024
Miami, Florida 10
San Diego, California 6/3/2024
Carolinas and Virginia, South Carolina 6/4/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Left Hand Reverse Bevel (LHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    2086
  • Panic Bar Base Height
    2-7/8 in. (73 mm)
  • Panic Bar Projection
    3 in. (76.2 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Push Button
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Concealed Vertical Rods Top Bolt
  • Push Pad Width
    23-1/2 in. (596.9 mm)
  • Recommended Door Type
    Aluminum Narrow, Medium, Wide Stile, Hollow Metal
  • Series
    20
  • Tall Door Extention Rods
    301347301348
  • UL Listed
    Yes
Product Overview
  • Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
  • Complies with ANSI 156.3, Grade 1 Specifications
  • Concealed Fastening for Added Security
  • Can Be Cut to Size

CRL Jackson® Model 2086 Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" – 301347 or 24" – 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKASC, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim such as 8500LV02628.

SPECIFICATIONS:
  • Standard for 36" (914 mm) Wide Door – Field Sizeable up to 48" (1.22 m) Width Available
  • Concealed Easy-to-Use Dogging System – Optional Cylinder Dogging is Available
  • Wear Points Insulated by Nylon Sleeves and Rollers

    2086 Concealed Vertical Rod Device – Top Bolt
  • Top and Bottom Bolt Action – 1/2" (13 mm) Throw
  • Standard Height 84" (2.13 m)
  • Requires Mortise Cylinder and Series 30821J Mounting Pad for Keyed Entry

    REPLACEMENT PARTS:
  • 301266628
  • 301265628
  • 302462
  • 301084628
  • 30763P
  • 301552
  • 30824628
  • 301311PKG
  • 308621J628
  • DL2170SCKDA
  • 302989628
