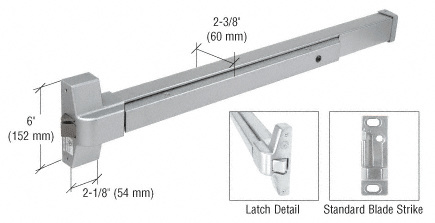

CRL Satin Stainless Steel Touch Bar Rim Panic Exit Device

Finish/Color : Stainless Steel
Item #: DL950SS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Stainless Steel Touch Bar Rim Panic Exit Device
×
CRL Satin Stainless Steel Touch Bar Rim Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Satin Stainless Steel Touch Bar Rim Panic Exit Device Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 36
Dallas, Texas 7/2/2024
Chicago (Elgin), Illinois 7
San Francisco/Oakland (Union City), California 7/4/2024
Atlanta, Georgia 2
New York Area (Secaucus, New Jersey) 7/2/2024
Boston (Taunton), Massachusetts 7/5/2024
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/2/2024
Philadelphia Area (Moorestown, New Jersey) 7/5/2024
Phoenix, Arizona 7/4/2024
Las Vegas, Nevada 7/4/2024
Houston, Texas 7/2/2024
Miami, Florida 7/2/2024
San Diego, California 7/1/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Door Thickness
    1-3/4
  • Finish/Color:
    Stainless Steel
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material
    Steel
  • Minimum Stile Width
    4-/14
  • Model
    DL950
  • Panic Bar Base Height
    2
  • Panic Bar Projection
    2-3/8
  • Panic Bar Width Net
    34-7/8
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Head Base Width
    2-1/8
  • Panic Head Height
    6
  • Panic Type
    Rim Exit Device
  • Push Pad Width
    21
  • Recommended Door Type
    Aluminum, Wood, Hollow Metal
  • Replacement Parts
    DL911SCKDA, DL911SCKAA, DL95STR1KE, DL9DKEY
  • Similar
    311295C4628
  • UL Listed
    Yes
Product Overview
  • For Use with Medium and Wide Stile Aluminum Doors
  • Painted Carbon Steel and Satin Stainless Steel Finishes Available
  • Minimum Force Releases Locking Mechanism

Our CRL Push-Pad Rim Panic Devices can be used on either single doors, or double doors with a mullion. Minimum required door stile width is 4-1/4" (108 mm). For your convenience, these Devices come fabricated to 34-7/8" (886 mm) overall length, ready-to-install on 36" (914 mm) wide doors without any modification, and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature defeats locking action during business hours. A Blade Strike is included with each Exit Device.

Our Cat. No. DL950SS Satin Stainless Steel Panic Device offers a more durable and attractive architectural finish, but as with the other finishes, the internal components should not be exposed to moisture or a corrosive environment.

For keyed entry, an optional Cat. No. DL911SC Series, or other brand, Rim Cylinder is required.

Product Warning:

This Panic Exit Device is fabricated with a 34-7/8" overall length so they are ready-to-install on 36" doors without modification. 36" width is the maximum door size. Minimum recommended stile width is 4-1/4" (108 mm).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
