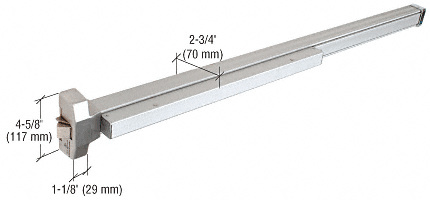

CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device

Finish/Color : Satin Aluminum
Item #: 1900A
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device
CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Aluminum 1900 Series Non-Handed Rim Panic Exit Device Stock
Los Angeles, California 2
Dallas, Texas 9/29/2023
Chicago (Elgin), Illinois 9/29/2023
San Francisco/Oakland (Union City), California 9/28/2023
Atlanta, Georgia 10/2/2023
New York Area (Secaucus, New Jersey) 10/2/2023
Boston (Taunton), Massachusetts 10/2/2023
Orlando, Florida 10/3/2023
Denver, Colorado 10/3/2023
Seattle (Kent), Washington 10/3/2023
Cleveland (Solon), Ohio 10/2/2023
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 1
Las Vegas, Nevada 9/28/2023
Houston, Texas 9/29/2023
Miami, Florida 10/3/2023
San Diego, California 9/27/2023
Carolinas and Virginia, South Carolina 10/3/2023
Product details
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Faceplate
  • Finish/Color:
    Satin Aluminum
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
  • Panic Bar Base Height
    1-7/8 in. (47.6 mm)
  • Panic Bar Projection
    2-3/4 in. (69.9 mm)
  • Panic Bar Width Net
    42-1/2 in. (1079.5 mm)
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Head Base Width
    1-1/8 in. (28.6 mm)
  • Panic Head Height
    4-5/8 in. (117.5 mm)
  • Panic Type
    Rim Exit Device
  • Push Pad Width
    22 in. (558.8 mm)
  • Recommended Door Type
    Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
  • Replacement Parts
    DL2170SCKDA, DL2170Y8KDA
  • Similar
  • UL Listed
Product Overview
  • For Use with 1-3/4" Narrow Stile, Medium, and Wide Stile Aluminum Doors, Wood or Hollow Metal Doors
  • Concealed Fastening for Added Security
  • Non-Handed and Reversible
  • UL Listed

These CRL 1900 Series Narrow Stile Panic Exit Devices are designed for 1-3/4" (44.5 mm) narrow stile aluminum doors, but can also be used with medium and wide stile aluminum, wood or hollow metal doors. The base is field sizeable, and fits doors 30" to 44" (762 to 1118 mm) wide and 1-3/4" (44.5 mm) thick. Ruggedly constructed with 3/4" (19 mm) throw cast brass latch bolt. Surface mounted adjustable roller strike included. This device is non-handed and is easy-to-install. For keyed entry, an optional Cat. No. DL911SC Series, or other brand, Rim Cylinder is required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
