• Simply Field Fabricate As Desired
• Jamb Can Be Cut at a Taper to Fill Vertical Gap When Glass Should Have Been Cut Out of Square But Was Not
• Use Monolithic Tempered Glass

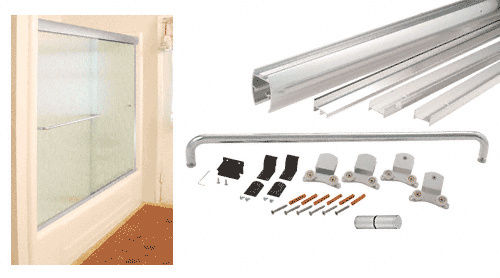

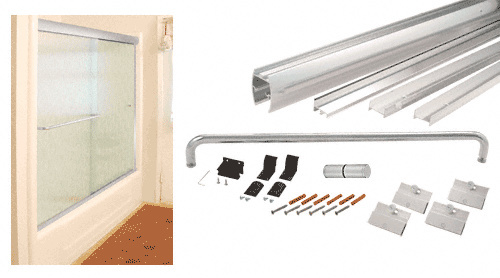

CRL Tapered Wall Jambs for CK/DK Cottage and EK Suite Series Sliders add versatility to our Frameless Sliding Shower Door Kits. Stock lengths of Headers, Header Fillers, Bottom Sills, Sidelite Sills, Side Jambs, Top Hangers and other accessory items complete the selection.

Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)
