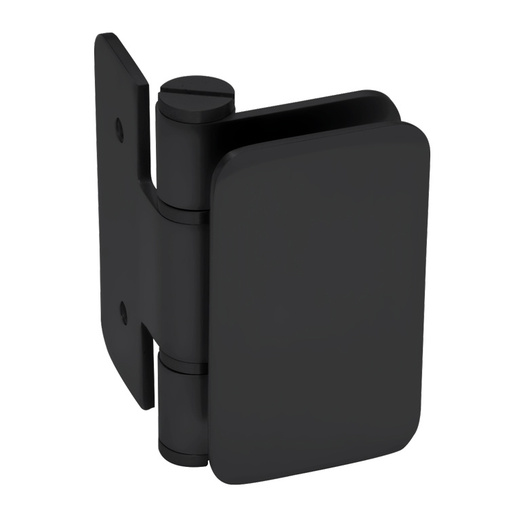

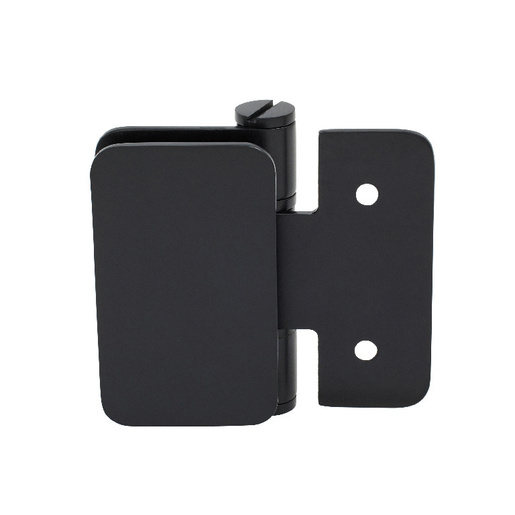

CRL Oil Rubbed Bronze Zurich 03 Series Wall Mount Inswing Hinge

Finish/Color : Oil Rubbed Bronze
Item #: ZUR030RB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 14.56 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Oil Rubbed Bronze Zurich 03 Series Wall Mount Inswing Hinge
×
CRL Oil Rubbed Bronze Zurich 03 Series Wall Mount Inswing Hinge
Quantity Standard Price Sale Price Your Price
CRL Oil Rubbed Bronze Zurich 03 Series Wall Mount Inswing Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 31
Dallas, Texas 2
Chicago (Elgin), Illinois 2
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 4
New York Area (Secaucus, New Jersey) 8
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 2
Denver, Colorado 2
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/27/2024
Las Vegas, Nevada 6/27/2024
Houston, Texas 6/28/2024
Miami, Florida 2
San Diego, California 6/26/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Offset
  • Finish/Color:
    Oil Rubbed Bronze
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    3-1/8 in. (79 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    100 lbs. (45.4 kg)
  • Maximum Door Weight - 3 Hinges
    150 lbs. (68 kg)
  • Maximum Door Width - 2 Hinges
    36 in. (914 mm)
  • Maximum Door Width - 3 Hinges
    40 in. (1016 mm)
  • Mounting Type
    Wall Mount
  • Self-Centering
    No
  • Series
    Zurich
  • Width
    1-7/8 in. (48 mm)
Product Overview
  • Wall Mount Inswing
  • Ideal for Bi-Fold Application
  • Available in Several Beautiful Finishes
  • Use Monolithic Tempered Glass

The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.


Use Item No. P512 Replacement Screws for Cover Plate available in multiple finishes. Conveniently packaged in packs of 100.

NOTE: Not Available in Germany.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).

SPECIFICATIONS:
  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
  • Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
  • Construction: Stainless Steel or Solid Brass
  • Hinge Swings: See descriptions next to photos of hinges.
  • Closing Type: Free-Swinging
  • Two Holes Required Per Hinge Per Panel (No Cut-Out)
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

    Product Warning:

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
