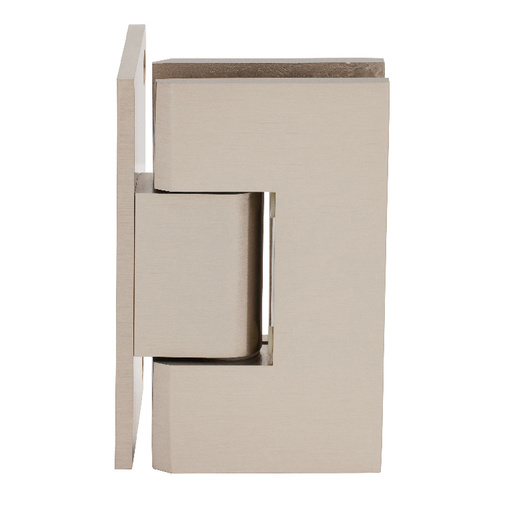

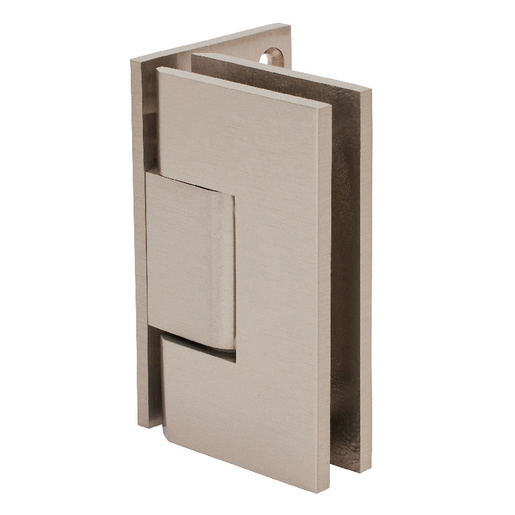

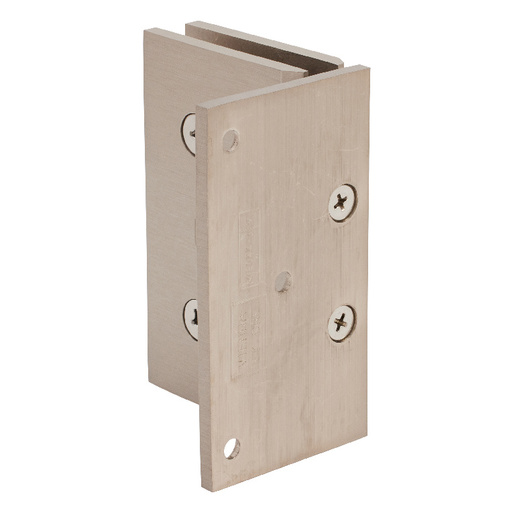

CRL Brushed Nickel Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge

Finish/Color : Brushed Nickel
Item #: V1E544BN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Nickel Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge
×
CRL Brushed Nickel Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Brushed Nickel Vienna 044 Series 5 Degree Pre-Set Wall Mount Offset Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 543
Dallas, Texas 73
Chicago (Elgin), Illinois 7
San Francisco/Oakland (Union City), California 9
Atlanta, Georgia 6
New York Area (Secaucus, New Jersey) 37
Boston (Taunton), Massachusetts 2
Orlando, Florida 2
Denver, Colorado 2
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 7
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 9
Houston, Texas 10
Miami, Florida 6/25/2024
San Diego, California 6/19/2024
Carolinas and Virginia, South Carolina 6/25/2024
Product details
  • 5 Degree Pre-Set
    Yes
  • Adjustable
    No

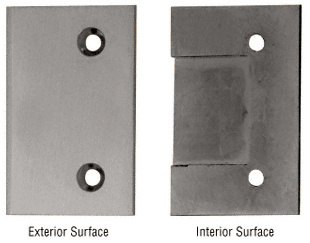

  • Back Plate
    Offset
  • Finish/Color:
    Brushed Nickel
  • Glazing Thickness
    3/8 in. to 1/2 in. (10 mm to 12 mm)

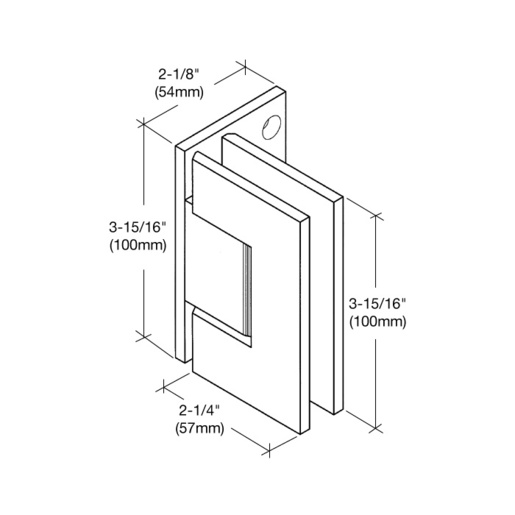

  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    100 lbs. (45.4 kg)
  • Maximum Door Weight - 3 Hinges
    130 lbs. (59 kg)
  • Maximum Door Width - 1/2 Glass
    32 in. (813 mm)
  • Maximum Door Width - 3/8 Glass
    34 in. (864 mm)
  • Maximum Door Width -1/2 Glass
    32
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Vienna
  • Width
    2-1/4 in. (57 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
  • Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel

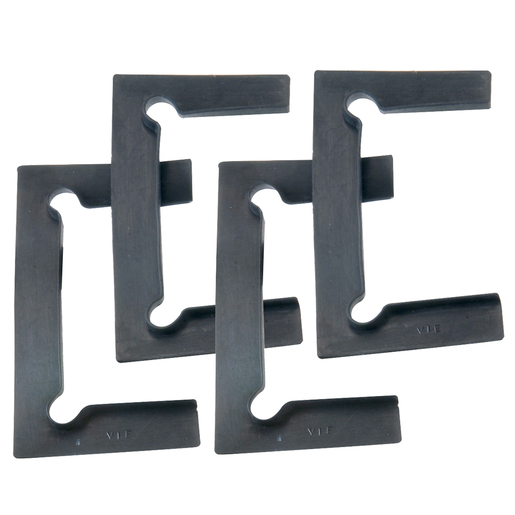

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
