CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

Item #: V1E380PN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 3.39 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov

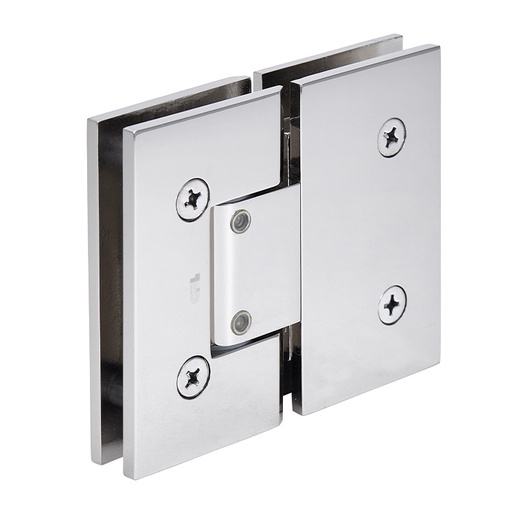

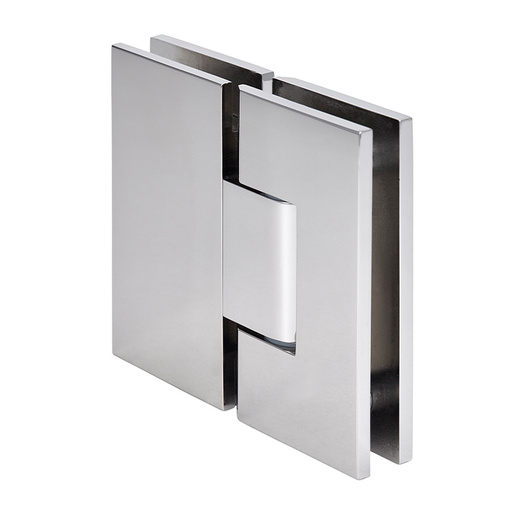

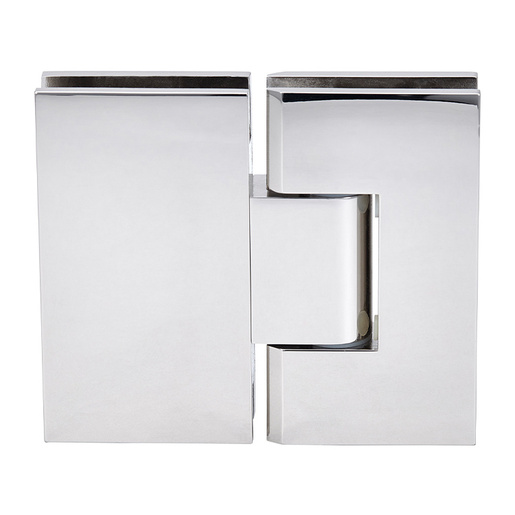

CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
×
CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Nickel Vienna 380 Series Adjustable 180 Degree Glass-to-Glass Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 36
Dallas, Texas 7/23/2024
Chicago (Elgin), Illinois 4
San Francisco/Oakland (Union City), California 2
Atlanta, Georgia 9
New York Area (Secaucus, New Jersey) 7
Boston (Taunton), Massachusetts 7/19/2024
Orlando, Florida 4
Denver, Colorado 2
Seattle (Kent), Washington 3
Cleveland (Solon), Ohio 4
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 7/25/2024
Las Vegas, Nevada 7/25/2024
Houston, Texas 2
Miami, Florida 2
San Diego, California 7/24/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    Yes
  • Design Style
    Squared
  • Edge Profile
    Square
  • Enclosure Type
    Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Polished Nickel
  • Glass To Glass Angle
    180
  • Glazing Thickness
    3/8 in. to 1/2 in. (10 mm to 12 mm)

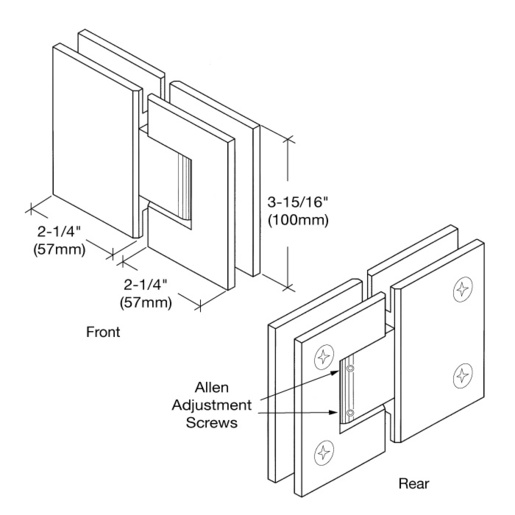

  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
  • Maximum Door Weight - 2 Hinges
    110 lbs. (49.9 kg)
  • Maximum Door Weight - 3 Hinges
    140 lbs. (63.5 kg)
  • Maximum Door Width
    36 in. (914 mm)
  • Mounting Type
    Glass To Glass
  • Opening Style
    Swing(side)
  • Positive Close
    No
  • Self-Centering
    Yes
  • Series
    Vienna
  • Width - Door Portion
    2-1/4 in. (57 mm)
  • Width - Sidelite Portion
    2-1/4
Product Overview
  • Adjustable to Any Angle Up to 90 Degrees without Removing Door
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Adjustable 180 Degree Glass-to-Glass
  • Use Monolithic Tempered Glass

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
