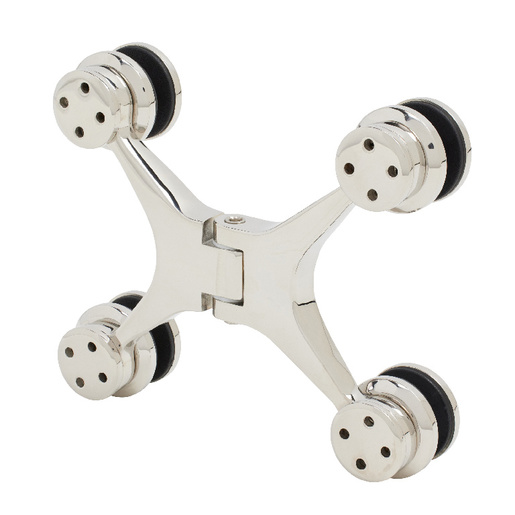

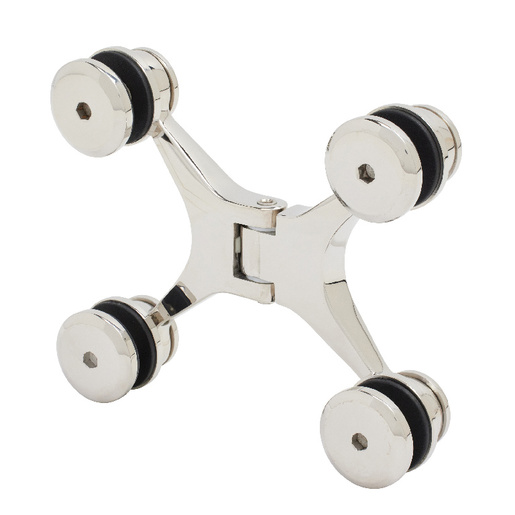

CRL 316 Polished Stainless Sydney Series Glass-to-Glass Mount Hinge

 Discontinued item. All sales are final.
No longer available.
Finish/Color : Polished Stainless Steel
Polished Stainless Steel
Item #: SYD180PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.27 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Polished Stainless Sydney Series Glass-to-Glass Mount Hinge
CRL 316 Polished Stainless Sydney Series Glass-to-Glass Mount Hinge
Quantity Standard Price Sale Price Your Price
CRL 316 Polished Stainless Sydney Series Glass-to-Glass Mount Hinge Stock
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Finish/Color:
    Polished Stainless Steel
  • Glass To Glass Angle
  • Glazing Thickness
    3/8 in. (10 mm)
  • Height
    4-1/4 in. (108 mm)
  • Material
    316 Stainless Steel
  • Maximum Door Weight - 2 Hinges
    80 lbs. (36.3 kg)
  • Maximum Door Weight - 3 Hinges
    120 lbs. (54.4 kg)
  • Maximum Door Width - 2 Hinges
  • Maximum Door Width - 3 Hinges
  • Mounting Type
    Glass To Glass
  • Series
  • Width
    5 in. (127 mm)
Product Overview
  • Opens Up to 90 Degrees Outwards; Settings at 90Degrees or 180 Degrees
  • Our Spider Type Design for the Construction of Frameless Showers
  • Choice of Two Mounting Options: Glass-to-Glass and Glass-to-Wall
  • Use Monolithic Tempered Glass

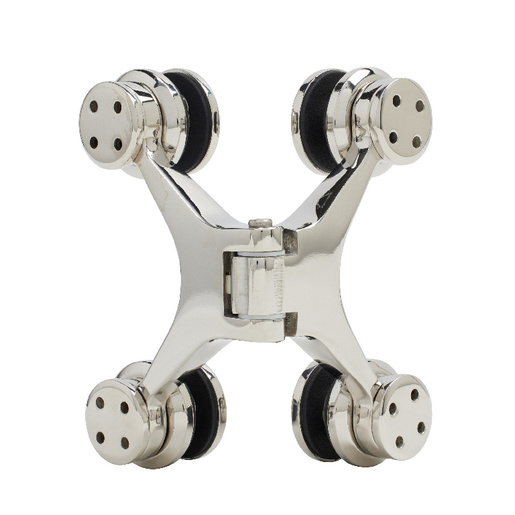

  • Glass-to-Glass Model Has Settings at 90 Degrees or 180 Degrees

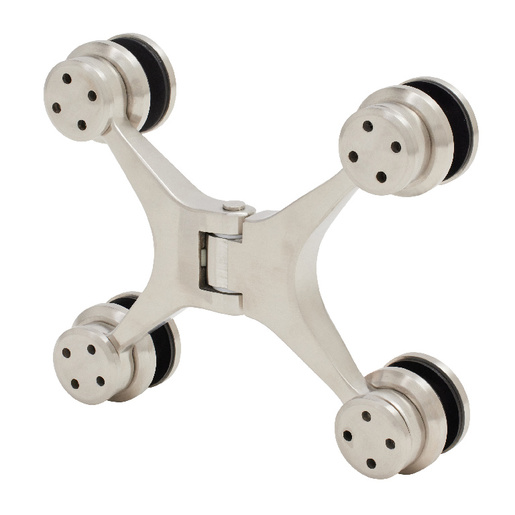

  • Constructed of 316 Stainless Steel in Your Choice of Brushed or Polished Finish

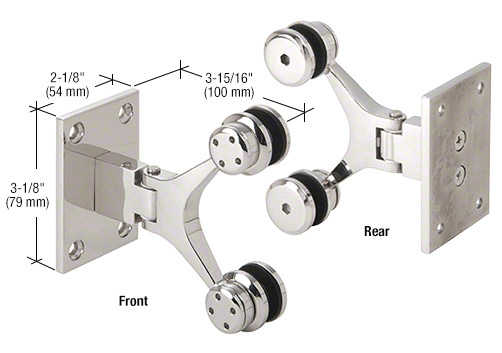

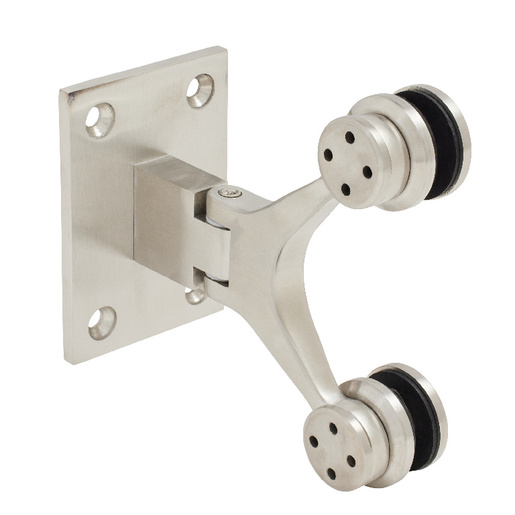

For a new design in CRL Frameless Shower Door Hinges, look no further than our Sydney Series. The unique Spider Type design is certain to give the frameless shower door a different look that will surely be noticed. Constructed of durable 316 stainless steel, Sydney Hinges are available in Wall-to-Glass and Glass-to-Glass models. The Glass-to-Glass model offers two settings at 90 degree and 180 degree. For doors falling in between these common installation angles, the springs may be removed to allow a free-swinging hinge.

Two holes are required per hinge for each panel to accommodate the through-bolts, with no cut-out necessary. The 316 stainless steel body of the Sydney Hinge allows the door to swing 90 degree outward. Polished and Brushed Stainless finishes are offered.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).

Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Construction: 316 Stainless Steel
Hinge Swings: Up to 90 degree Outwards (Requires Stop)
Closing Type: Precise Closing to 0 degree
Two 5/8" (16 mm) Diameter Holes required per panel per hinge, no cut-out.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
