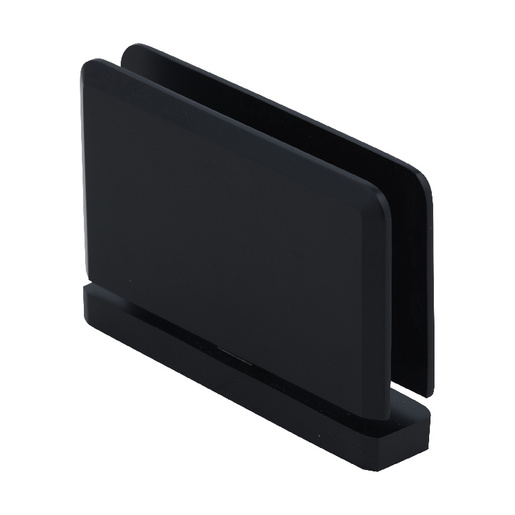

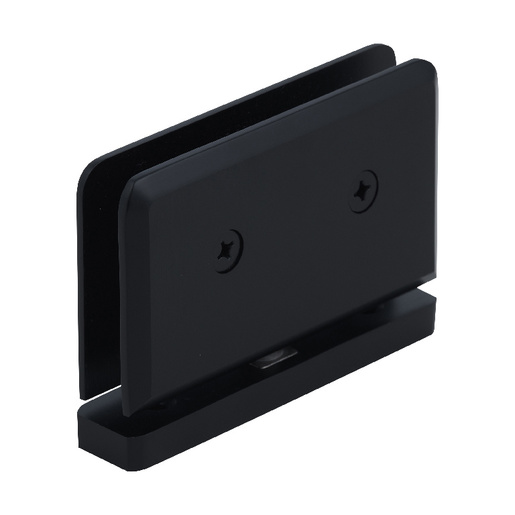

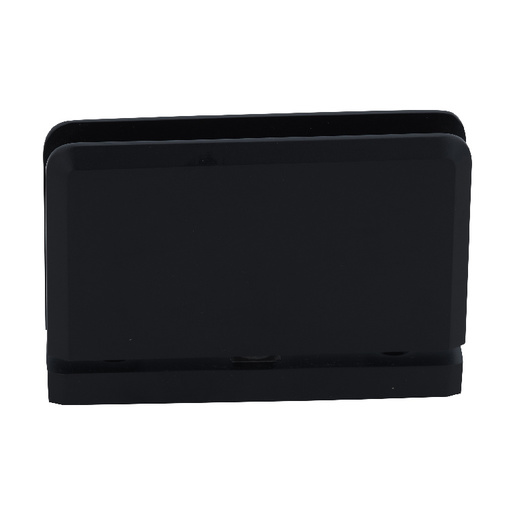

CRL Oil Rubbed Bronze Senior Prima 01 Series Top or Bottom Mount Hinge
×
CRL Oil Rubbed Bronze Senior Prima 01 Series Top or Bottom Mount Hinge
Quantity Standard Price Sale Price Your Price
CRL Oil Rubbed Bronze Senior Prima 01 Series Top or Bottom Mount Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 505
Dallas, Texas 21
Chicago (Elgin), Illinois 25
San Francisco/Oakland (Union City), California 17
Atlanta, Georgia 24
New York Area (Secaucus, New Jersey) 18
Boston (Taunton), Massachusetts 10
Orlando, Florida 26
Denver, Colorado 12
Seattle (Kent), Washington 18
Cleveland (Solon), Ohio 25
Philadelphia Area (Moorestown, New Jersey) 7
Phoenix, Arizona 16
Las Vegas, Nevada 14
Houston, Texas 14
Miami, Florida 24
San Diego, California 7
Carolinas and Virginia, South Carolina 34
Product details
  • Edge Profile
    Beveled
  • Finish/Color:
    Oil Rubbed Bronze
  • Glazing Thickness
    1/2 in. (12 mm)
  • Height
    2-5/8 in. (67 mm)
  • Material
    Brass
  • Maximum Door Weight
    145 lbs. (65.8 kg)
  • Maximum Door Width
    36 in. (914 mm)
  • Mounting Type
    Head & Sill Mount
  • Self-Centering
    Yes
  • Series
    Senior Prima
  • Width
    4-3/4 in. (121 mm)
Product Overview
  • Top or Bottom Mount
  • For Use with 1/2" (12 mm) Glass
  • Available in Several Beautiful Finishes
  • Use Monolithic Tempered Glass
  • 3 Year Warranty
  • U.S. Patent 5,297,313

Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System.

NOTE: Must order SRHAB01 Senior Adaptor Block separately. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
