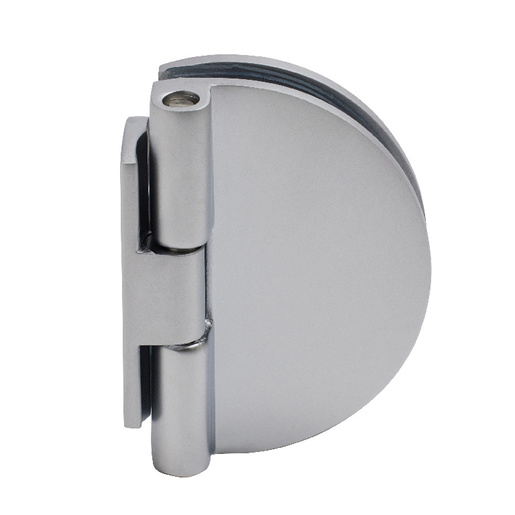

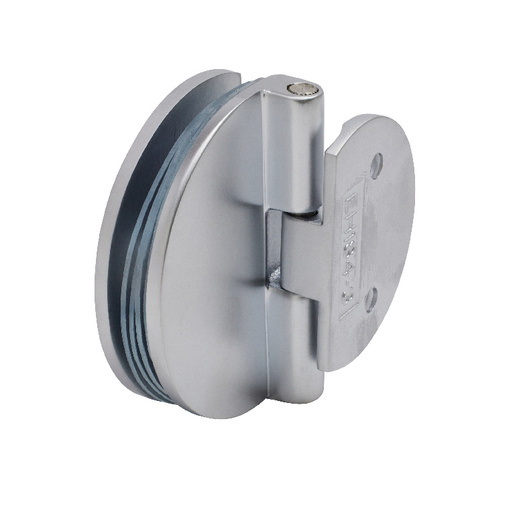

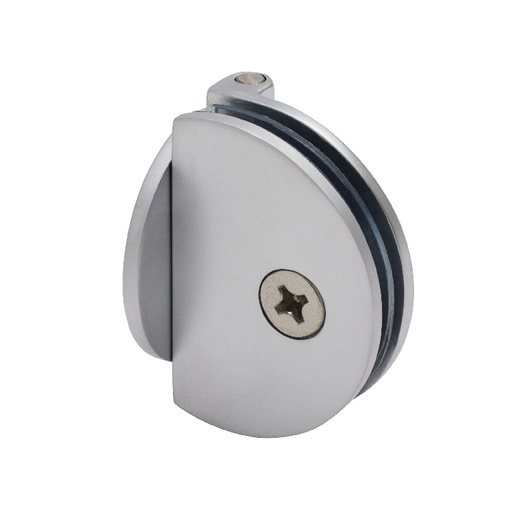

CRL Satin Chrome Half Round Light Duty Frameless Shower Door Hinge

Finish/Color : Satin Chrome
Substitutions: EH186
Item #: EH185
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Pack

Shipping Weight : 5.76 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Chrome Half Round Light Duty Frameless Shower Door Hinge
×
CRL Satin Chrome Half Round Light Duty Frameless Shower Door Hinge
Quantity Standard Price Sale Price Your Price
CRL Satin Chrome Half Round Light Duty Frameless Shower Door Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 149
Dallas, Texas 6/21/2024
Chicago (Elgin), Illinois 6/21/2024
San Francisco/Oakland (Union City), California 6/20/2024
Atlanta, Georgia 6/24/2024
New York Area (Secaucus, New Jersey) 6/24/2024
Boston (Taunton), Massachusetts 6/21/2024
Orlando, Florida 6/25/2024
Denver, Colorado 6/25/2024
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 6/24/2024
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 6/20/2024
Houston, Texas 7
Miami, Florida 6/25/2024
San Diego, California 6/19/2024
Carolinas and Virginia, South Carolina 6/25/2024
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Offset
  • Edge Profile
    Square
  • Finish/Color:
    Satin Chrome
  • Glazing Thickness
    1/4 in. To 5/16 in. (6 mm To 8 mm)
  • Height
    2-3/16 in. (56 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    50 lbs. (22.7 kg)
  • Maximum Door Weight - 3 Hinges
    75 lbs. (34 kg)
  • Maximum Door Width
    24 in. (610 mm)
  • Mounting Type
    Wall Mount
  • Width
    1-1/2 in. (38 mm)
Product Overview
  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • One 1/2" (12 mm) Hole Required
  • Two Per Package
  • Three Year Warranty
  • Use Monolithic Tempered Glass

These CRL Half Round Hinges are an excellent choice in many showcase applications. Requires 1/2" (12 mm) diameter hole for installation. The maximum recommended width is 24" (610 mm) and maximum weight should not exceed 50 lbs. (23 kg).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
