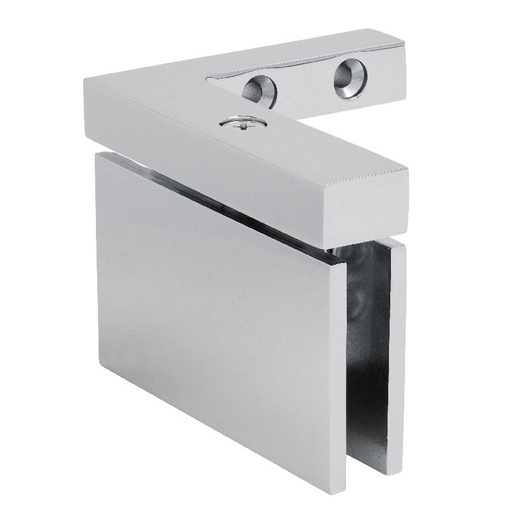

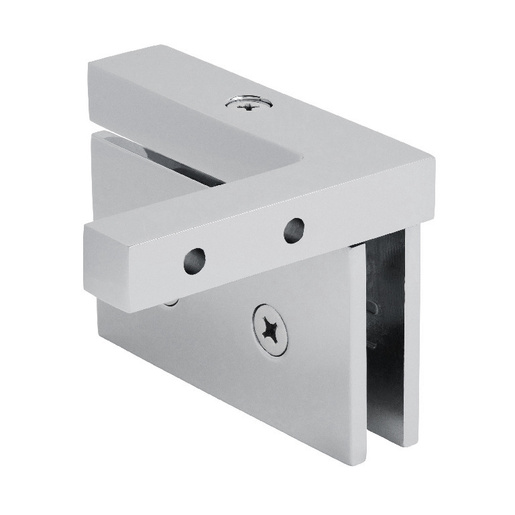

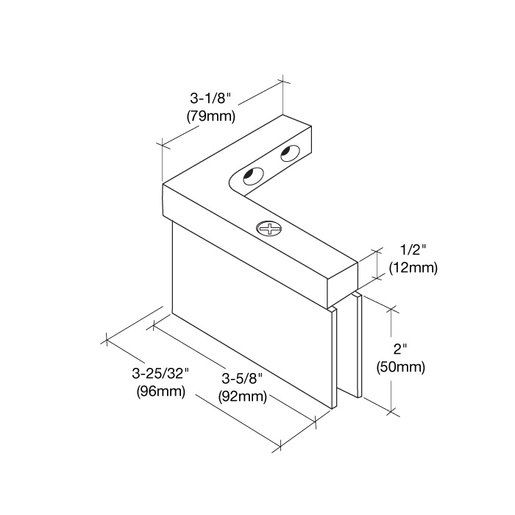

CRL Polished Chrome Cardiff Series Left Hand Mount Hinge

Item #: CAR05LCH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Cardiff Series Left Hand Mount Hinge
×
CRL Polished Chrome Cardiff Series Left Hand Mount Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Cardiff Series Left Hand Mount Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 43
Dallas, Texas 7/30/2024
Chicago (Elgin), Illinois 4
San Francisco/Oakland (Union City), California 2
Atlanta, Georgia 10
New York Area (Secaucus, New Jersey) 6
Boston (Taunton), Massachusetts 2
Orlando, Florida 1
Denver, Colorado 1
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 8/5/2024
Philadelphia Area (Moorestown, New Jersey) 8/2/2024
Phoenix, Arizona 7
Las Vegas, Nevada 1
Houston, Texas 7/30/2024
Miami, Florida 4
San Diego, California 1
Carolinas and Virginia, South Carolina 8/6/2024
Product details
  • Design Style
    Squared
  • Enclosure Type
    Corner, Niche, Tailor Made Solutions
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Handing
    Left Hand
  • Height
    2 in. (51 mm)
  • Material
    Brass
  • Maximum Door Weight
    100 lbs. (45.4 kg)
  • Maximum Door Width
    31 in. (787 mm)
  • Mounting Type
    Wall Mount
  • Opening Style
    Pivot(floor)
  • Self-Centering
    Yes
  • Series
    Cardiff
  • Width
    3-5/8 in. (92 mm)
Product Overview
  • Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Use Monolithic Tempered Glass
  • U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5º Pivot Pin sets are available when you want to alter the closing position of the door by 5º. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
