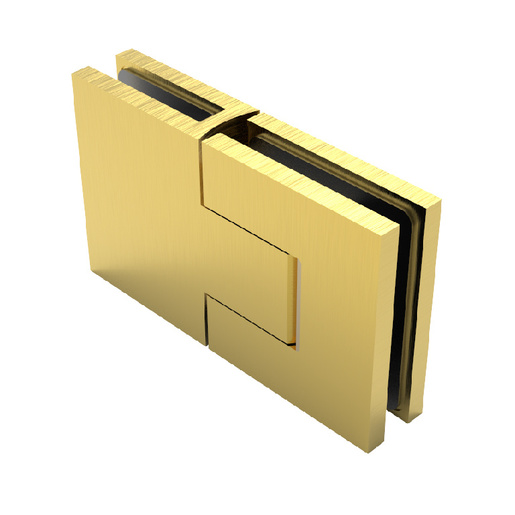

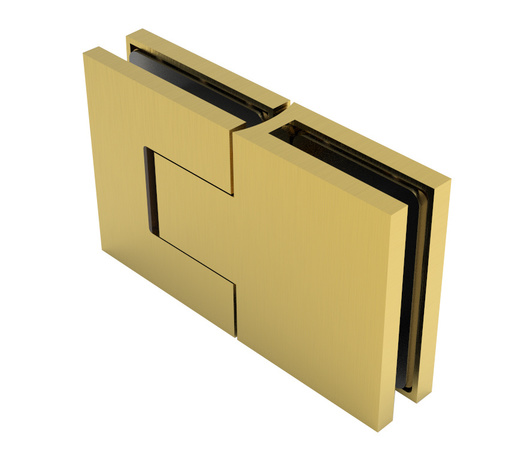

CRL Satin Brass Bellagio Glass-to-Glass 180 Degree Hinge

Item #: BEL380SB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Brass Bellagio Glass-to-Glass 180 Degree Hinge
×
CRL Satin Brass Bellagio Glass-to-Glass 180 Degree Hinge
Quantity Standard Price Sale Price Your Price
CRL Satin Brass Bellagio Glass-to-Glass 180 Degree Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 7/15/2024
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California 7/18/2024
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) 6
Boston (Taunton), Massachusetts 7/19/2024
Orlando, Florida 7/23/2024
Denver, Colorado 7/23/2024
Seattle (Kent), Washington 7/23/2024
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) 2
Phoenix, Arizona 7/18/2024
Las Vegas, Nevada 7/18/2024
Houston, Texas In Other Service Center
Miami, Florida 7/23/2024
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina 7/23/2024
Product details
  • Edge Profile
    Square
  • Finish/Color:
    Satin Brass
  • Glass To Glass Angle
    180
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
    Brass
  • Maximum Door Weight
    110
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Series
    Bellagio
  • Width
    4-7/8 in. (124 mm)
Product Overview
  • Works with 5/16” to 3/8” (8 mm to 10 mm) glass

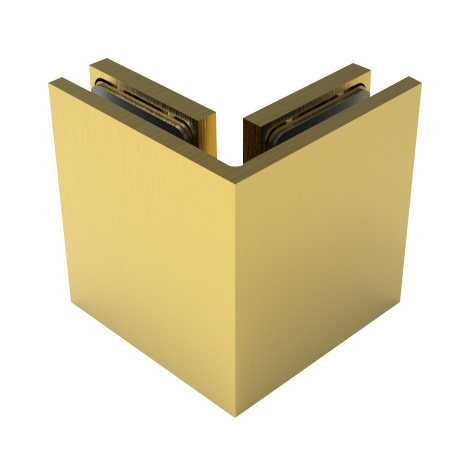

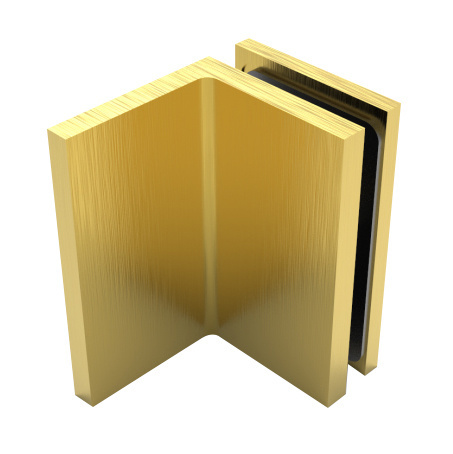

  • Matching Bellagio Series Brackets Available
  • Tight Gaps Prevent Water Infiltration
  • Self-centers from 25 Degrees
  • Adjustable Positive Closure

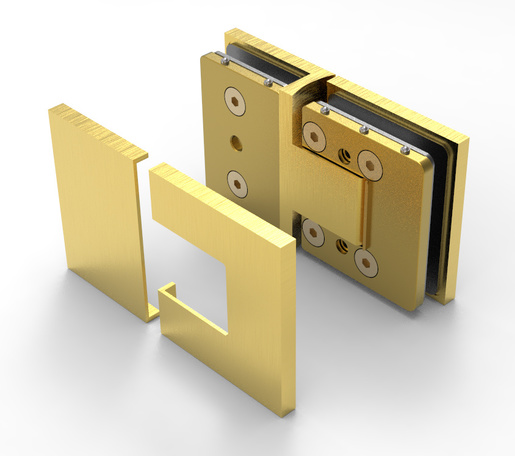

  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.


Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
