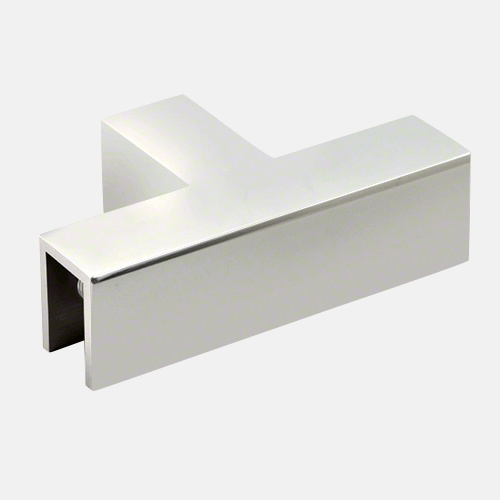

CRL Polished Chrome 90 Degree "Sleeve Over" T-Juntion Glass Clamp

Item #: S0GCT90CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 7.52 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome 90 Degree "Sleeve Over" T-Juntion Glass Clamp
×
CRL Polished Chrome 90 Degree "Sleeve Over" T-Juntion Glass Clamp
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome 90 Degree "Sleeve Over" T-Juntion Glass Clamp Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 115
Dallas, Texas 2
Chicago (Elgin), Illinois 5/10/2024
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 5/13/2024
New York Area (Secaucus, New Jersey) 7
Boston (Taunton), Massachusetts 5/13/2024
Orlando, Florida 5/14/2024
Denver, Colorado 5/14/2024
Seattle (Kent), Washington 5/14/2024
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 5/10/2024
Phoenix, Arizona 5/9/2024
Las Vegas, Nevada 5/9/2024
Houston, Texas 5/10/2024
Miami, Florida 5/14/2024
San Diego, California 5/8/2024
Carolinas and Virginia, South Carolina 5/14/2024
Product details
  • Finish/Color:
    Polished Chrome
  • Glass To Glass Angle
    90
  • Glazing Thickness
    5/16 in. To 1/2 in. (8 mm To 12 mm)
  • Material
    Brass
  • Mounting Type
    Glass To Glass
Product Overview
  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Solid Brass
  • Use Monolithic Tempered Glass
  • Special T-Junction Design
  • Assists with Shear Forces

CRL Sleeve Over Glass Glass-to-Glass T-Junction Clamp are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required

NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.

Product Warning:

These Clamps are not designed to take the place of Headers or a Support Bar.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
