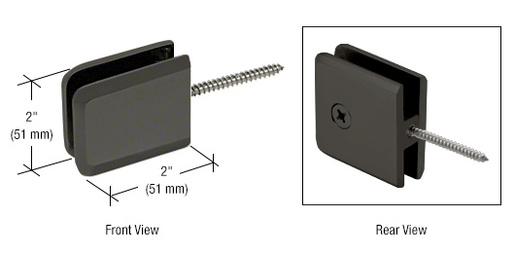

CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp

Finish/Color : Matte Black
Substitutions: SGC186MBL
Item #: BGC186MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 7.84 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp
×
CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp
Quantity Standard Price Sale Price Your Price
CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 330
Dallas, Texas 8
Chicago (Elgin), Illinois 5
San Francisco/Oakland (Union City), California 2
Atlanta, Georgia 48
New York Area (Secaucus, New Jersey) 9
Boston (Taunton), Massachusetts 8
Orlando, Florida 5
Denver, Colorado 6
Seattle (Kent), Washington 2
Cleveland (Solon), Ohio 5
Philadelphia Area (Moorestown, New Jersey) 6
Phoenix, Arizona 7
Las Vegas, Nevada 7/4/2024
Houston, Texas 16
Miami, Florida 6
San Diego, California 1
Carolinas and Virginia, South Carolina 2
Product details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Material
    Brass
  • Mounting Type
    Wall / Ceiling Mount
Product Overview
  • For 3/8" to 1/2" (10 to 12 mm) Thick Glass
  • Use Monolithic Tempered Glass
  • Glass Transom Swivels to Allow Release of Steam
  • Wall Mount, and 180 Degree Models Available
  • Solid Brass Material

CRL Beveled Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
