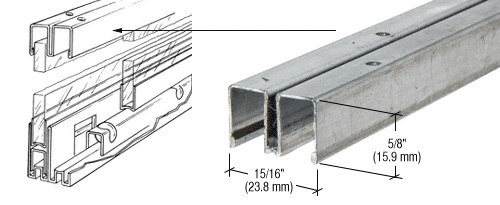

CRL Double Track Ball Bearing Package Assembly

Finish/Color : Zinc
Zinc
Zinc
Item #: KV992144
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 23.75 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Double Track Ball Bearing Package Assembly
×
CRL Double Track Ball Bearing Package Assembly
Quantity Standard Price Sale Price Your Price
CRL Double Track Ball Bearing Package Assembly Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 24
Dallas, Texas 5/7/2024
Chicago (Elgin), Illinois 2
San Francisco/Oakland (Union City), California 5/2/2024
Atlanta, Georgia 5/6/2024
New York Area (Secaucus, New Jersey) 5/6/2024
Boston (Taunton), Massachusetts 5/13/2024
Orlando, Florida 5/7/2024
Denver, Colorado 5/7/2024
Seattle (Kent), Washington 5/7/2024
Cleveland (Solon), Ohio 2
Philadelphia Area (Moorestown, New Jersey) 5/10/2024
Phoenix, Arizona 5/2/2024
Las Vegas, Nevada 5/2/2024
Houston, Texas 5/7/2024
Miami, Florida 5/7/2024
San Diego, California 5/6/2024
Carolinas and Virginia, South Carolina 5/7/2024
Related Products
Product details
  • Anti-Lift Feature
    No
  • Finish/Color:
    Zinc
  • Glazing Thickness
    1/4 in. (6 mm)
  • Material
    Steel
  • Usage
    Interior
  • Wheel Type
    Ball Bearing Carrier
  • Width
    144 in. (3657.6 mm)
Product Overview
  • Zinc Plated Steel Assemblies for Use with 3/16" (4mm) or 1/4" (6 mm) Glass
  • 12' (3.66 m) Stock Lengths
  • All Steel Construction

This CRL "Roll-Ezy" Ball Bearing Track Assembly is ideal for installations with bypassing doors. The assembly is easy-to-install, and once installation is complete the doors roll smoothly with frictionless ball-bearing operation. The assembly is designed for use with 3/16" (4mm) or 1/4" (6 mm) glass. Four Optional pre-cut sizes available for your convenience to eliminate waste and save on shipping.

Assemblies Include:

  • 1 piece of KV993 Upper Channel
  • 2 pieces of KV995 Shoe for Glass
  • 2 pieces of KV997 Ball Bearing Carrier
  • 1 piece of KV999 Lower Track

    NOTE:
    System is designed for two sliding panels per openings. For more panels per opening, installer should fashion stops in lower track to restrict each set of two panels to one section of track.
    Each sliding panel height not to exceed two and one-half times the width.
    Max 50 pounds (22.7 kg) per linear foot
    For each foot of opening, use: 1' of upper channel and lower track and shoe (plus 1" per door for overlap), with 1-1/2' of carrier (1-1/2 times door width for each door). Glass is cut 1-1/4" lower than height of opening.
    Formula to calculate the Ball Bearing Carrier length is: Opening divided by 4, then multiply by 3 = Length of Carrier
    Components for KV992144

    997KV6 (x1)

    KV993 (x1)

    KV995 (x1)

    KV997 (x1)

    KV999 (x1)
