• For Light Duty Applications of 50 or Fewer Uses Per Day
• For Windows Exceeding 1050 Square Inches (Width x Height)
• Available Pre-Glazed or Non-Glazed
• Available in Vertical and Horizontal Formats
• Each Unit is Customized to Fit Your Needs

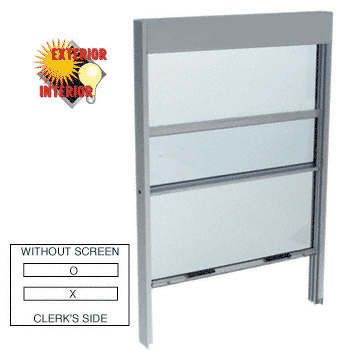

This CRL "SW" Series Sliding Service Window is available for interior or exterior applications, with a variety of formats and options to choose from. Uses include walk-up food service, receptionist or pharmacy windows. Vertical Windows include nylon runners over coiled tension springs to provide smooth operation. Horizontal Windows operate with top nylon guides. For larger windows, a full bottom track with rollers is recommended.

All larger Vertical Format Service Windows which exceed 1050 square inches (width x height) require Sash Balances. They are concealed behind a 4-5/8" (117 mm) tall header. An overhang is recommended if used in an exterior application.

NOTE: Specify handling when ordering; left or right hand fixed from clerks side. Surround frame not available for insulating glass models. If ordered with keyed lock the screen panel will be installed in center channel.

SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted. Painted units ship glazed only.
Glazing: 1/4" (6 mm) Glass
Installation Instructions Included

Product Warning:

All larger Vertical Format Service Windows which exceed 1050 square inches (width x height) require Sash Balances.
