CRL 316 Brushed Stainless Point Supported End Post

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: PWC1EBS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.68 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov

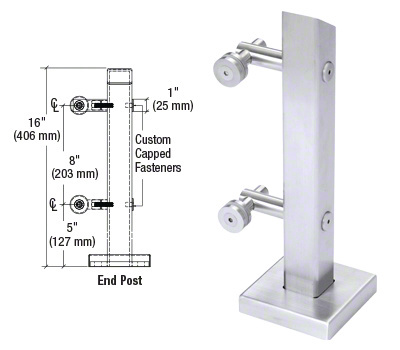

CRL 316 Brushed Stainless Point Supported End Post
×
CRL 316 Brushed Stainless Point Supported End Post
Quantity Standard Price Sale Price Your Price
CRL 316 Brushed Stainless Point Supported End Post Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta 3
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 77
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas 3
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Base Plate Cover Included
    Yes
  • Base Plate Length
    5 in. (127 mm)
  • Base Plate Mounting Holes
    4
  • Base Plate Thickness
    3/8 in. (10 mm)
  • Base Plate Width
    5 in. (127 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Height
    16 in. (406 mm)
  • Material
    316 Stainless Steel
  • Mounting Hole Diameter
    9/16 in. (14 mm)
  • Profile
    End Post
Product Overview
  • Available in 316 Grade Stainless Steel in Two Architectural Finishes
  • For Use With 1/2" (12 mm) Monolithic Tempered Glass and 9/16" (13.52 mm) Laminated Tempered Glass
  • Non-Handed

CRL’s Point Supported Center and End Mini Posts are designed for small windbreaks, pool surrounds, and guard rails. These innovative Mini Posts can be installed on almost any mounting substrate, and meet virtually all safety requirements and building codes. Glass fabrication requires two 3/4" (19 mm) diameter holes per Post. NOTE: Anchor bolts sold separately.


Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
