• For 12 mm (1/2") Tempered Glass
• 5/8" (16 mm) Rod Easily Inserts Into Core-Drilled Hole
• Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass

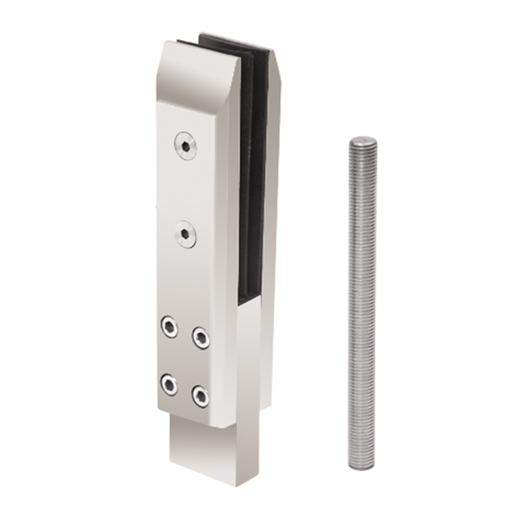

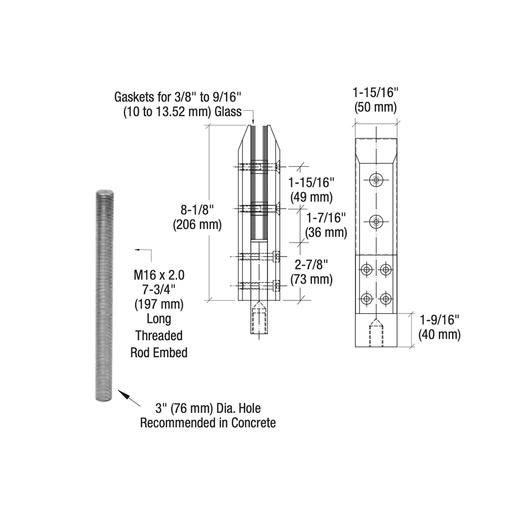

CRL Three-Piece Clamps are designed for insertion in core-drilled holes in a deck or on top of a wall. Glass fabrication requires two 3/4" (19 mm) holes per Clamp. Height: 8-1/8" (206 mm).

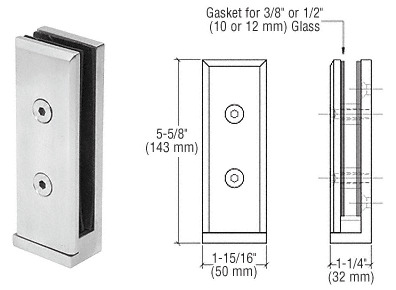

CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.

NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.

Stainless Steel Advisory:
