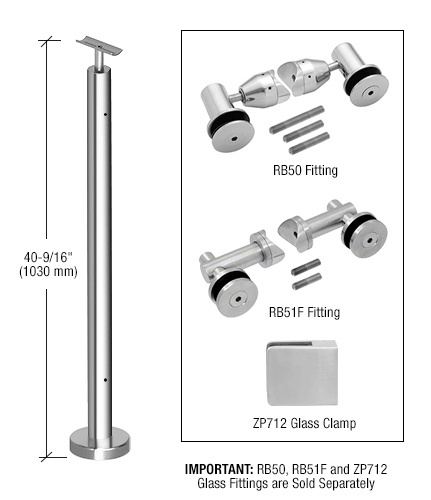

CRL Polished Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings

Finish/Color : Polished Stainless Steel
Polished Stainless Steel
Item #: P7F42CPS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 12.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings
×
CRL Polished Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings
Quantity Standard Price Sale Price Your Price
CRL Polished Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Base Plate Cover Included
    Yes
  • Base Plate Diameter
    4-3/4 in. (121 mm)
  • Base Plate Mounting Holes
    2
  • Base Plate Thickness
    3/8 in. (10 mm)
  • Finish/Color:
    Polished Stainless Steel
  • Material
    Stainless Steel
  • Mounting Hole Diameter
    9/16 in. (14 mm)
Product Overview
  • For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
  • Glass Attachment Fittings Sold Separately
  • Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
  • Custom Post Heights Also Available
  • Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

CRL's Surface Mounted Post Railing Kits are manufactured from Schedule 40 1.9" (48 mm) diameter Stainless Steel Tubing, and are designed for guard rail or hand rail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 Hand Rail Tubing. Kits are supplied complete with a Base Plate, Base Cover Flange, and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.

Product Warning:

All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
