CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass

Finish/Color : Mill
Mill
Substitutions: B5S10D
Item #: 8B10D
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 60.0 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
×
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
Quantity Standard Price Sale Price Your Price
CRL 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 3/22/2024
Dallas, Texas 3/26/2024
Chicago (Elgin), Illinois 22
San Francisco/Oakland (Union City), California 2/29/2024
Atlanta, Georgia 3/26/2024
New York Area (Secaucus, New Jersey) 2
Boston (Taunton), Massachusetts 3
Orlando, Florida 29
Denver, Colorado 1
Seattle (Kent), Washington 4/2/2024
Cleveland (Solon), Ohio 10
Philadelphia Area (Moorestown, New Jersey) 3/29/2024
Phoenix, Arizona 13
Las Vegas, Nevada 8
Houston, Texas 3/26/2024
Miami, Florida 2
San Diego, California 3
Carolinas and Virginia, South Carolina 19

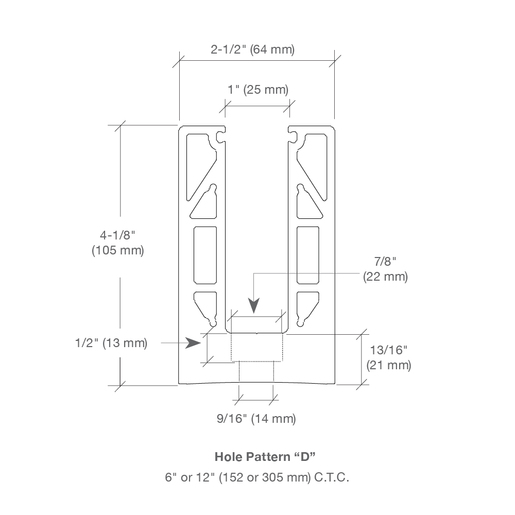

Product details
  • Drilling Center To Center
    12 in. (305 mm)
  • Finish/Color:
    Mill
  • Glazing Thickness
    1/2 in. (13 mm)
  • Glazing Type
    Monolithic
  • Height
    4-1/8 in. (105 mm)
  • Length
    120 in. (3048 mm)
  • Material
    Aluminum
  • Profile
    Drilled
  • Width
    2-1/2 in. (64 mm)
Product Overview

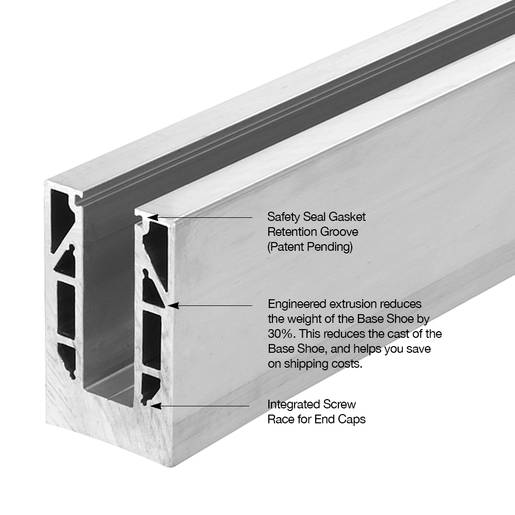

  • 30% Lighter Than CRL's Traditional B5S Series Shoe
  • Designed and Engineered for Glass Railing and Windscreen Applications
  • For Use with 1/2" (12 mm) Monolithic Tempered Glass
  • 10' and 20' Stock Lengths Available Drilled and Undrilled
  • Environmentally Friendly (Green Product)
  • Easily Cut to Length Using Your Chop Saw
  • Use Monolithic Tempered Glass
  • CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269

This CRL 8B Series Square Base Shoe is the same profile as our standard B5S Series, but it is 30% lighter, which means it is more price competitive, environmentally friendly, and will reduce your shipping costs. Designed to work with CRL's patented TAPER-LOC® System, 8B can be easily cut to the required length using a chop saw with a minimum 10" (254 mm) saw blade for aluminum.

Product Warning:

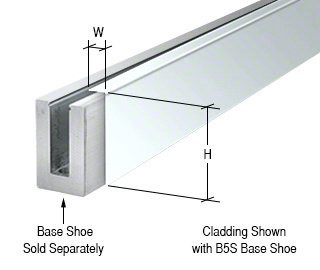

CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
