• For 15 mm Monolithic Tempered Glass Thickness Range 14.5 to 15.5 mm (.570" to .610")
• Typically Used as the Base Channel for Glass Railing Systems
• Drilled and Counter Bored 11-13/16" (300 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
• Custom Cutting and Mitering Service Available

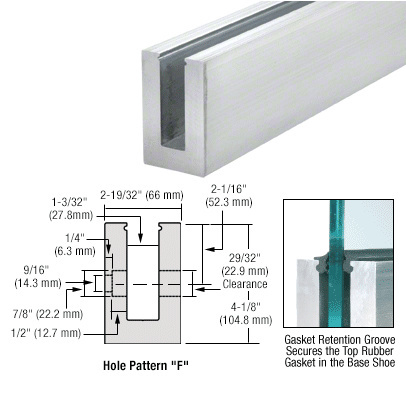

The CRL B6S Series Heavy-Duty Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.

GLASS SPECIFICATONS:
3/4" (19 mm) Thick Glass when using TAPER-LOC™ Dry Glaze System or Wet Glaze System.

Product Warning:

CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
