CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass

Finish/Color : Mill
Mill
Substitutions: 8B10F
Item #: B5S10F6
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass
×
CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass
Quantity Standard Price Sale Price Your Price
CRL B5S Series Mill 120" Square Base Shoe Fascia Mount for 1/2" Glass Stock
Branch Location STOCK AVAILABILITY
Product details
  • Drilling Center To Center
    6 in. (152 mm)
  • Finish/Color:
    Mill
  • Glazing Thickness
    1/2 in. (13 mm)
  • Glazing Type
    Monolithic
  • Length
    120 in. (3048 mm)
  • Material
    Aluminum
Product Overview
  • For 1/2" (12 mm) Monolithic Tempered Glass
  • Typically Used as the Base Channel for Glass Railing Systems or Windscreens

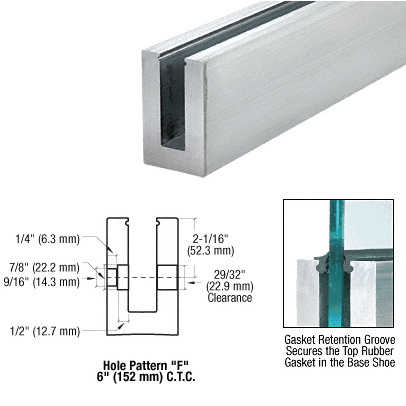

  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available
  • Use Monolithic Tempered Glass
  • CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269

The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.

GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC™ Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.

Product Warning:

CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
