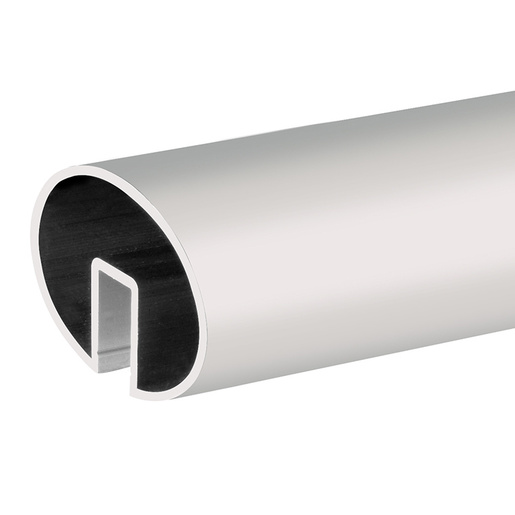

CRL Satin Anodized 4" x 2-1/2" Oval Extruded Aluminum Cap Rail for 1/2" or 5/8” Glass

Finish/Color : Satin Anodized
Item #: GR0V4SA
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 37.16 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Anodized 4" x 2-1/2" Oval Extruded Aluminum Cap Rail for 1/2" or 5/8” Glass
×
CRL Satin Anodized 4" x 2-1/2" Oval Extruded Aluminum Cap Rail for 1/2" or 5/8” Glass
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized 4" x 2-1/2" Oval Extruded Aluminum Cap Rail for 1/2" or 5/8” Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 42
Dallas, Texas 6/21/2024
Chicago (Elgin), Illinois 6/21/2024
San Francisco/Oakland (Union City), California 6/20/2024
Atlanta, Georgia 6/24/2024
New York Area (Secaucus, New Jersey) 6/24/2024
Boston (Taunton), Massachusetts 6/21/2024
Orlando, Florida 6/25/2024
Denver, Colorado 6/25/2024
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 6/24/2024
Philadelphia Area (Moorestown, New Jersey) 6/21/2024
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 6/20/2024
Houston, Texas 6/21/2024
Miami, Florida 6/25/2024
San Diego, California 6/19/2024
Carolinas and Virginia, South Carolina 6/25/2024
Product details

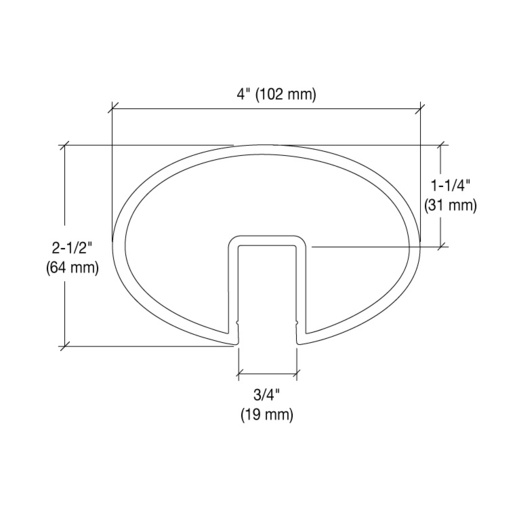

  • Depth
    1-1/4 in. (32 mm)
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    1/2 in. & 5/8 in. (12 mm & 16 mm)
  • Height
    2-1/2 in. (64 mm)
  • Length
    240 in. (6096 mm)
  • Material
    6063-T6 Aluminum
  • Profile
    Oval
  • Thickness
    .125 in. (3.2 mm)
  • Width
    4 in. (102 mm)
Product Overview
  • Available for 1/2", 9/16" and 5/8" (12, 13.52, or 16 mm) Glass

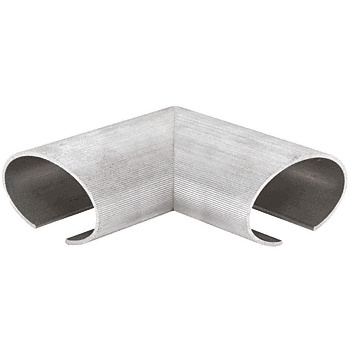

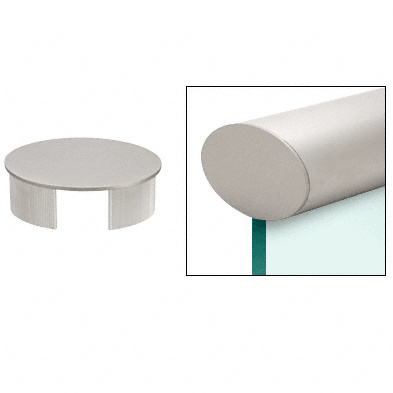

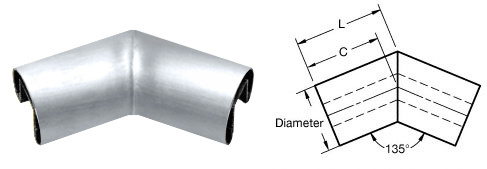

  • Connects to a Variety of Fabricated Corners and End Caps
  • Custom Shapes and Sizes are Available
  • Use Sleeve Number GR0V4CSM

CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.

Please contact CRL Technical Sales for more information or a quote.

NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.

This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
