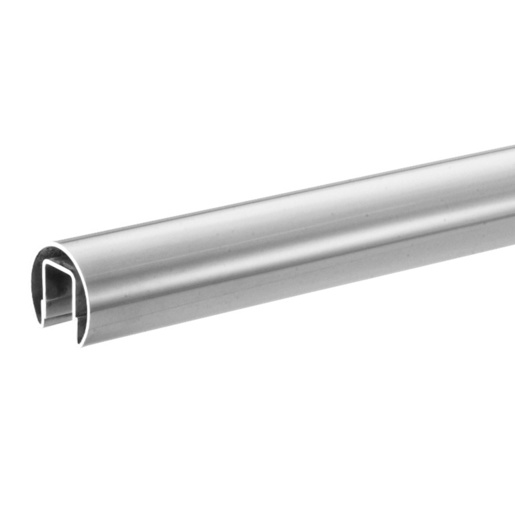

CRL Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120"

Finish/Color : Polished Stainless Steel
Polished Stainless Steel
Item #: GR16PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120"
CRL Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120"
Quantity Standard Price Sale Price Your Price
CRL Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120" Stock
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144

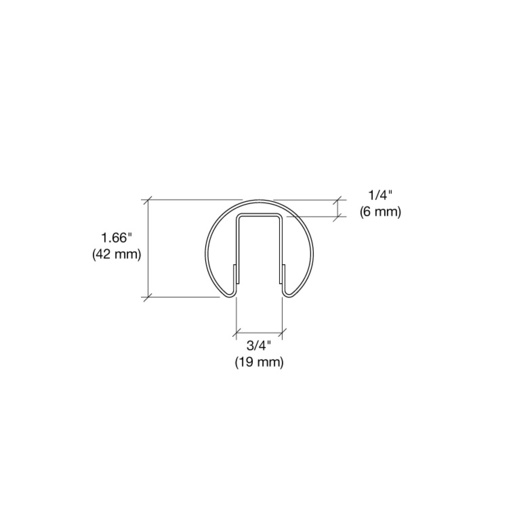

Product details
  • Depth
    1/4 in. (6 mm)
  • Diameter
    1.66 in. (42 mm)
  • Finish/Color:
    Polished Stainless Steel
  • Glazing Thickness
    1/2 in., 5/8 in., 3/4 in. (12 mm, 16 mm, 19mm)
  • Length
    120 in. (3048 mm)
  • Material
    Stainless Steel
  • Thickness
    .05 in. (1.27 mm)
Product Overview
  • Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
  • Four Architectural Finishes

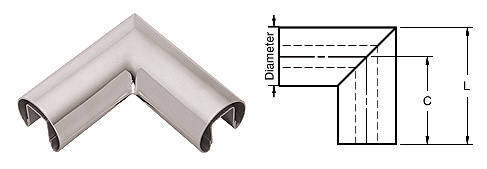

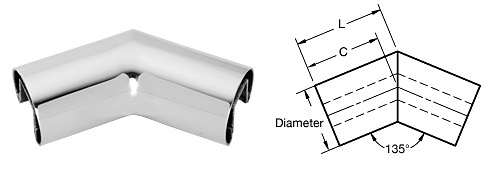

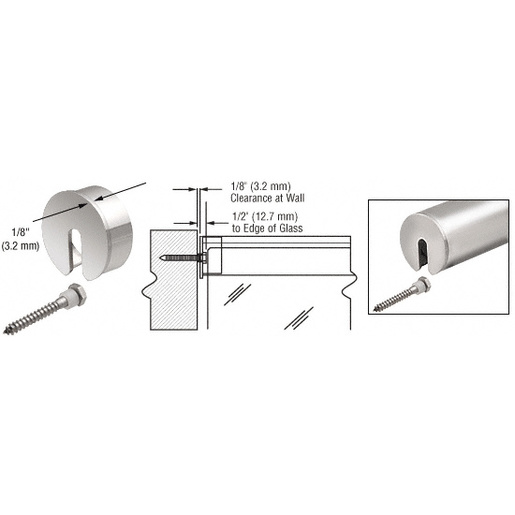

  • Connects to a Variety of Fabricated Corners and End Caps
  • Cut to Size or Custom Fabricated Lengths Also Available
  • For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
  • For Brass, Alloy 260 is Standard
  • Use Connector Sleeve No. GR16CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.

All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
