CRL 304 Grade Brushed Stainless 3" Premium Cap Rail for 3/4" Glass - 120"

Finish/Color : Brushed Stainless Steel
Item #: GR307BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 304 Grade Brushed Stainless 3" Premium Cap Rail for 3/4" Glass - 120"
×
CRL 304 Grade Brushed Stainless 3" Premium Cap Rail for 3/4" Glass - 120"
Quantity Standard Price Sale Price Your Price
CRL 304 Grade Brushed Stainless 3" Premium Cap Rail for 3/4" Glass - 120" Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 7
Dallas, Texas 5/3/2024
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 5/2/2024
Atlanta, Georgia 2
New York Area (Secaucus, New Jersey) 1
Boston (Taunton), Massachusetts 5/6/2024
Orlando, Florida 5/7/2024
Denver, Colorado 5/7/2024
Seattle (Kent), Washington 5/7/2024
Cleveland (Solon), Ohio 5/3/2024
Philadelphia Area (Moorestown, New Jersey) 5/3/2024
Phoenix, Arizona 2
Las Vegas, Nevada 5/2/2024
Houston, Texas 5/3/2024
Miami, Florida 5/7/2024
San Diego, California 5/1/2024
Carolinas and Virginia, South Carolina 5/7/2024

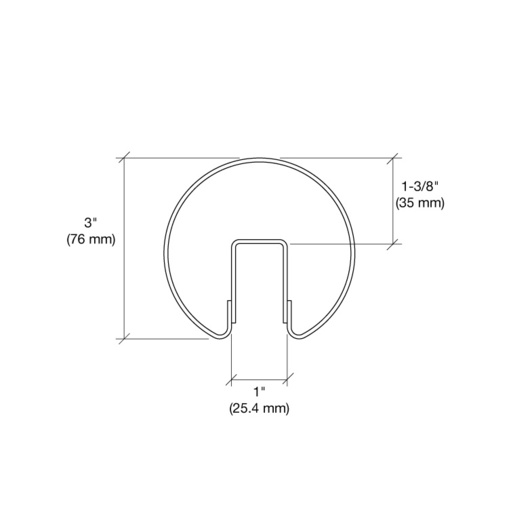

Product details
  • Diameter
    3 in. (76 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/4 in. (19 mm)
  • Length
    120 in. (3048 mm)
  • Material
    Stainless Steel
  • Thickness
    .0625 in. (1.59 mm)
Product Overview
  • Bumped-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Three Diameters and Four Architectural Finishes

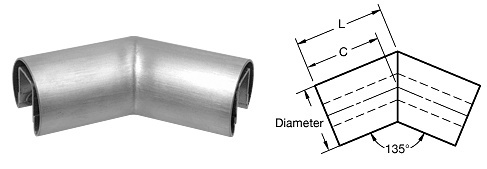

  • Connect to Fabricated Corners and End Caps
  • Use Sleeve No. GR30CSS

All CRL Premium Cap Railings are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use our Cat. No. 32629 Metal Contact Cement to achieve a secure and permanent bond at all connections.

Use Connector Sleeves to connect Cap Rails. Stainless alloy 304 is standard; Stainless alloy 316 is available on special order. For Brass, alloy 260 is standard. Please contact CRL Railing Technical Sales for more information or for a quote.

NOTE: When using GR207, GR257, and GR307 Series Cap Rails, Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.

*This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
