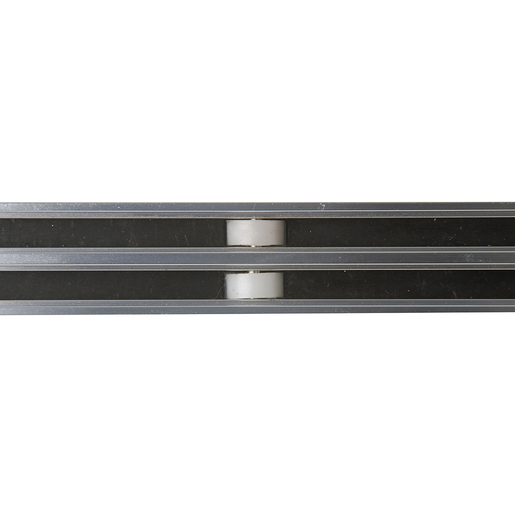

CRL Polished Aluminum Finish Rollertrack Bottom Track 4 m Length, 21 mm Wide, 18 mm High

Finish/Color : Aluminum
Aluminum
Item #: 16785
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 3.075 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Aluminum Finish Rollertrack Bottom Track 4 m Length, 21 mm Wide, 18 mm High
×
CRL Polished Aluminum Finish Rollertrack Bottom Track 4 m Length, 21 mm Wide, 18 mm High
Quantity Standard Price Sale Price Your Price
CRL Polished Aluminum Finish Rollertrack Bottom Track 4 m Length, 21 mm Wide, 18 mm High Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 6/27/2024
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California In Other Service Center
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts In Other Service Center
Orlando, Florida In Other Service Center
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) In Other Service Center
Phoenix, Arizona In Other Service Center
Las Vegas, Nevada In Other Service Center
Houston, Texas In Other Service Center
Miami, Florida In Other Service Center
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina In Other Service Center
Related Products
Product details
  • Finish/Color:
    Aluminum
  • Glazing Thickness
    1/4 in. (6 mm)
  • Height
    3/4 in. (19.1 mm)
  • Length
    158 in. (4013.2 mm)
  • Material
    Aluminum
  • Width
    7/8 in. (22.2 mm)
Product Overview
  • Perfect for Showcases and Display Cabinets
  • Designed for 1/4" (6 mm) Tempered Glass
  • Smooth Operating Nylon Rollers are Built Into the Lower Track
  • Simple 'Lift and Drop' Glass Installation
  • Top Channel Can Be Used as Side Jambs or for a Surround Frame
  • Polished Aluminum Finish

Our CRL Double Roller Track System is beautifully designed to be both attractive and functional. Everything you need to install sliding glass doors into a showcase or cabinet is included. Just cut the Upper Channel and Lower Track to size and it's ready-to-install.

Smooth operating nylon rollers are spaced every 4" (102 mm) in the Lower Track, which has been pre-drilled with holes for securing it to the base. The Top Channel is easily set into place above the Bottom Track, and can even be used as a side jamb to provide a full surround frame for the glass doors.NOTE: Designed for use with 1/4" (6 mm) tempered glass, the maximum recommended panel size is 60" (1.52 m) tall by 30" (792 mm) wide, or a ratio of 1.5:1. Recommended minimum overlap of glass panels is 1-1/2" (38 mm).

General Glass Cutting Guidelines: Glass Height = Opening Height minus 7/8" (22 mm).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
