• 4,000 Lbs. (1814 kg) Capacity
• Designed to Move Full Crates Up To 16-1/2" Thick
• 1-1/4" IPS Aluminum Alloy Pipe with Steel Under-frame Construction
• 4" Wide Toe-Plates

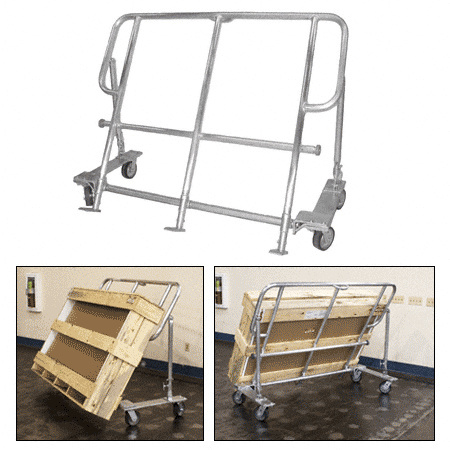

The CRL Tubular Aluminum Tilting Crate Handler can lean forward to lift crates like a common dolly then lean back on to its rollers for moving the crates throughout the shop. This Handler has extending support arms which extend 24" (610 mm) on either end, increasing the load capacity to 120" (3.05 m) wide. The back support braces are adjustable for changing the tilt angle of the handler to increase the load capacity. Designed to carry loads up to 60" (1.52 m) High and 4,000 lbs. (1814 kg) in Weight. This Handler measures 40" (1.02 m) wide, 72" (1.83 m) long (with extensions retracted), and 52" (1.32 m) high. Approximate shipping weight is 180 lbs. (82 kg). Ships dissembled F.O.B. the nearest CRL service center.

Product Warning:

CRATE SIZES MUST BE CONFIRMED BETWEEN CUSTOMER AND PRODUCT MANAGEMENT BEFORE ORDERING. EVEN THOUGH THIS CRATE HANDLER HAS A 4000LB CAPACITY, SOME CRATES CANNOT BE MOVED ON THIS DOLLY DUE TO THEIR OVERALL SIZE. UNLIKE THE MECHANICS OF A HAND TRUCK, THE LOAD CAN BE TILTED BACK TO ANY PRESET ANGLE BETWEEN 75 AND 45 DEGREES. THIS ALLOWS THE AB TO BE USED FOR CRATES UP TO 16-1/2 THICK.
IT ALSO SOLVES THE PROBLEM OF A SHORT CRATE WITH A LOW CENTER OF GRAVITY. Follow manufacturers load limits and crate handling procedures. Failure to do so may result in operator injury.
