• Capacity 600 Lbs. (272 kg)
• Self-Clamping Action Locks Loads Up to 2" (51 mm) Thick
• One Person Can Load and Maneuver

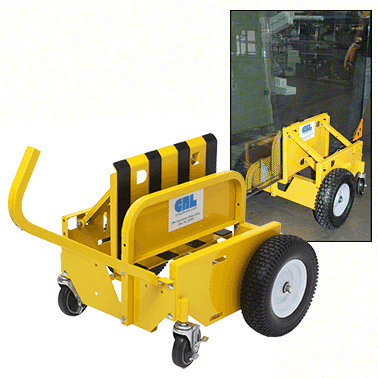

The CRL Glasstrax Glass Dolly makes it easier than ever to move heavy glass lites smoothly and safely. Load your glass centered on the Glasstrax and the weight of the glass will automatically pull the rubber lined sidewalls together, clamping it in place. The more weight loaded, the tighter the grip. Self-adjusting for glass up to 2" (51 mm) thick.

The 26" (660 mm) wide footprint maneuvers the load easily with a tight turning radius. Big 12-1/4" (311 mm) diameter maintenance-free tires let you roll over obstacles such as hoses and electrical cords that would normally prohibit the safe transport of glass with front locking caster wheels. When you reach your unloading location, just lift the glass to automatically release the clamp. Made from top quality tubular steel to withstand daily use. All wheels are secured with cotter pins for added safety. A built-in pull handle lets you move the CRL Glasstrax when unloaded, and its small size makes storage convenient. Great for carrying table tops, bullet resistant glazing, or any heavy sheet material in your shop or on the job site.

SPECIFICATIONS:

Maximum Capacity: 700 Lbs. (317.5 kg)

Maximum Thickness: 2" (51 mm)

Ship Weight: 67 Lbs. (30.4 kg)

Additional distance measurements: From the floor to the bottom frame of the GT02: 3-3/4" (95.3 mm)

From the floor to the bottom of a piece of glass in the GT02: 7-1/4" (184 mm)

From the floor to the top of the GT02 when it is loaded: 19-1/2" (495 mm)

From the floor to the top of the GT02 with no load: 21-1/2" (546 mm)

NOTE: approximately; the glass could be tilted a little up or down from one side to the other.
