- Designed for Upright Glass Handling
- Provides Optimum Support when Handling Large Lites of Glass
- Decreases Transfer Time
- AC and Air Powered Units Available
- Operates on 110 Volts AC
This

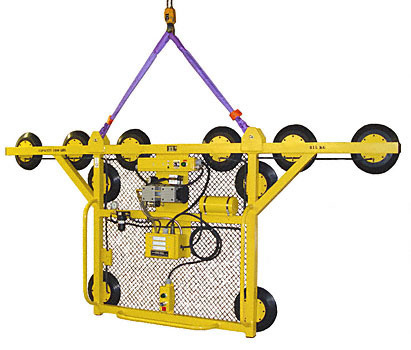

CRL Wood's 1,800 Pound Capacity D.C. Gentle Giant Vacuum Lifting Frame is designed for vertical lifting of large lights of glass. Overhead cranes or hoists of your supply provide upward and downward movement. This vertical lifter is used when rotation and tilt are not required for load positioning. The 'T' shaped frame distributes the lift equally, providing rigidity and stability across the glass surface. Vacuum controls are conveniently mounted on the lower bar assembly for easy access.
The
VLGG1011LAC uses a 12 volt A.C. 50/60 hertz, 6 amps power supply. The ten, 8" (280 mm) lipped vacuum cups apply to the glass in only six seconds and release from the glass in approximately four seconds.
Standard features include twist-lock electrical plug, blow-off for quick release, green safe lift light, vacuum gauge, vacuum reserve tank, vacuum line filter, spring mounted pads, nylon slings and operator safety mesh.
Other options available on special order include a vacuum loss warning buzzer, individual pad shutoffs, voltage adaptation, and 12-Volt/DC vacuum back up system.
Powr Lifting Frames for RentCRL offers large
Power Lifting Frames on a week to week rental basis. Customers are responsible for all common carrier freight charges and may require to provide a security deposit. Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the manufacturer. Billing is for full weeks only, no partial weeks. For details, availability and actual pricing please contact CRL Technical Sales Glass and Glazing Division.
Stipulations:
Available Frames (Spec Data Sheets on Request)
North America
P11104 Capacity 700 lbs.
MRT411LDC Capacity 700 lbs.
P21104412 Capacity 1400 lbs.
P211047 Capacity 1400 lbs.
Australia
P11104AU Capacity 318kg.
AUMRT411LDC Capacity 318 kg.
AUP21104412 Capacity 635 kg.
AUP211047DC Capacity 635 kg.
Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the manufacturer. Billing is for full weeks only, no partial weeks.Customers are responsible for both freight in and out, and must ship the frame back packed in the same manner and condition as it arrived.Rentals can only be made to open account CRL customers with current account balances and available credit.Customer must maintain and operate frames as per the manufacturer's instructions for use. Damage to, or loss of the frame are the responsibility of the customer. Only a few of these rental frames are available, so advanced reservations are necessary. The manufacturer's engineers will contact the customer to confirm the frame being rented is appropriate for a safe and effective lift.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
