• Reduces Hazards Associated with Lifting Loads From Upright Racks
• Innovative Quadra-Tilt Linkage
• 360 lbs. (165 kg) Lifting Capacity

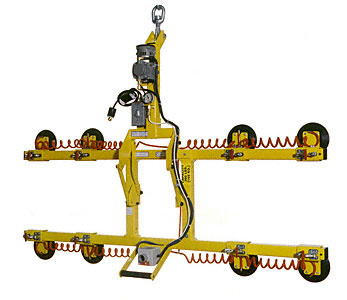

The CRL Wood's Powr-Grip® DC Powered 8-Pad Quadra-Tilt 360 Series features an innovative Four-Bar Tilt Mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. The Vacuum Lifter also features sliding adjustable vacuum pads that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because vacuum pads can attach at any number of locations on the load. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.

SPECIFICATIONS:

Adjustable Vacuum Pad Spread:
Length: Min: 38" (965 mm), Max: 100-1/4" (2546 mm)
Width: Min: 18" (457 mm), Max: 29" (737 mm)

Number/Size of Vacuum Pads:
8/6" (153 mm) Diameter Vacuum Pads

Lifting Capacity:
360 Lbs. (165 kg)

Unit Weight:
100 lbs. (46 kg)

Standard Operating Power:
120 Volts AC, 60 Hertz, 3 Amps (240 Volts AC, 50/60 Hertz, 2 Amps also available)

Alternative Power Systems:
DC Power System (Cat. No. MTA8lP6FDCS)
Air (Venturi) Power System (Cat. No. MTA8lP6FA1R)

Apply: 4 sec. Release: 4 sec. (approx.)

Load Movement:
Assisted Manual Tilt, 90 degrees between upright and flat

Standard Features:
Vacuum Gauge
Vacuum Line Filter
Sliding Adjustable Vacuum Pad Mounts
Spring-Mounted Pads
Twist-Lock Electrical Plug
Blow-Off For Quick Release
Multiple Handles For Easy Load Positioning

Available Options:
Vacuum Loss Warning Buzzer (Cat. No. E03VLW)
Individual Pad Shutoffs (Cat. No. CM1C0WB)
2" (51 mm) Pad Spacer (Cat. No. CM3PE2)
Voltage Adaptation (Cat. No. E06VA)
