• Reduces Hazards Associated with Lifting Loads from Upright Racks
• Innovative Quadra-Tilt Linkage
• 360 Lbs. (165 kg) Lifting Capacity

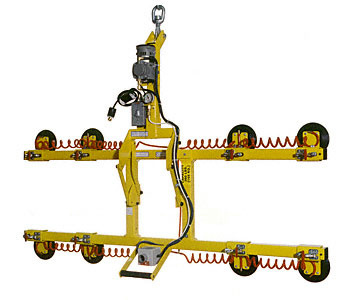

The CRL Wood's Powr-Grip® 8 Pad Quadra-Tilt 360 features a unique Four-Bar Tilt Mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright rack. When a load is tilted to either the upright or the flat position, the Lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. This Lifter also features sliding adjustable pads that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because Vacuum Pads can attach at any number of locations on the load.

Adjustable Pad Spread:
Length: Min: 38" (965 mm), Max: 100-1/4" (2546 mm)
Width: Min: 18" (457 mm), Max: 29" (737 mm)

Number/Size of Pads: 8/6" (153 mm) Diameter

Load Capacity: 360 Lbs. (165 kg)

Unit Weight: 100 (46 kg)

Standard Operating Power: 120V AC, 60 Hz, 3 AMP(240V AC, 50/60 Hz, 2 AMP also available)

Apply: 4 sec. Release: 4 sec. (approx.)

Load Movement: Assisted manual tilt, 90 degree between upright and flat.

Standard Features:
Vacuum Gauge
Vacuum Line Filter
Sliding Adjustable Pad Mounts
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Multiple Handles for Easy Load Positioning

Available Options:

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

Individual Pad Shutoffs CAT. NO. CM1C0WB

2" (51 mm) Pad Spacer CAT. NO. CM3PE2

Voltage Adaptation CAT. NO. E06VA

Alternative Power Systems
DC Power System CAT. NO. MTA8lP6FDCS
Air (Venturi) Power System CAT. NO. MTA8lP6FA1R
