• Three Configurations / Settings
• Full Manual 360 Degree Rotation with Tilt From Any Position
• Cord-Free Operation with On-Board Sealed Battery
• CRL Stocks, Ships From Your Nearest CRL Warehouse

CRL Wood's Powr-Grip® Manual Rotator/Tilter Vacuum Lifting Frame is the most versatile vacuum lifting system ever offered. 3 flexible frame configurations allow you to set the frame to suit your requirements. Full 360 degree rotation allows tilt to flat from any position. A 700 pound safe work load rating is maintained by an on-board battery powered vacuum system that supplies constant suction pressure to the vacuum pads. The electrical system is cord-free, and includes a system analyzer and charger unit. The smooth 360 degree rotational pivot can lock at each quarter point.

IMPORTANT NOTES:

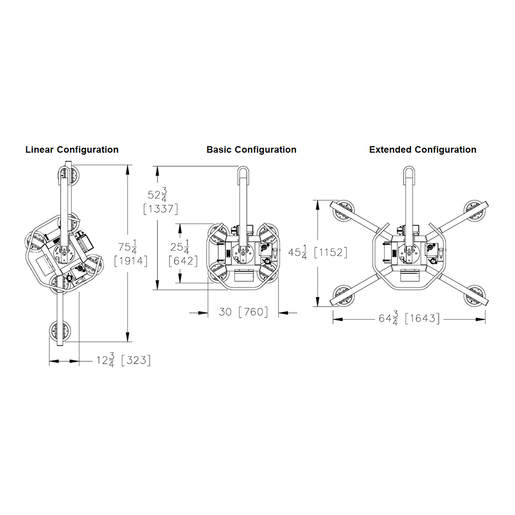

Standard Pad Spread:
28" x 32-3/4" (basic configuration)
48" x 65-1/2" (extended configuration)
78" x 15-1/2" (linear configuration)

Number/Size of Pads:
4/11" (280 mm) diameter lipped

Lifting Capacity:
700 lb. (320 kg)
On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.

Average Unit Weight:
122 lb. (56 kg)

Standard Operating Power:
12V DC, 10 AMP

Load Movement:
Manual rotation, 360 degree edgewise, with locking at each 1/4 point.
Manual tilt, 90 degree between upright and flat, with automatic latching in upright position.

Standard Features:
Low Vacuum Warning Light
Onboard Battery and Charger
Battery Energy Gauge
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-Mounted Pads
Removable Pad Mounts
Extension Arms


Carrying case:  CRL Wood's Powr-Grip® Heavy-Duty Transport Case for MRT and MRTA Frames
