• Large Lifting Capacity at an Economical Price
• Load Capacity: 1000 Lbs. (455 kg)
• Available in AC, DC, or Air Powered Models

CRL Wood's 1000 Series Large Powr-Frames have 180 degree rotation and 90 degree tilt. These Powr-Grip® vacuum lifters offer reliable performance and a large lifting capacity for the economically minded user.

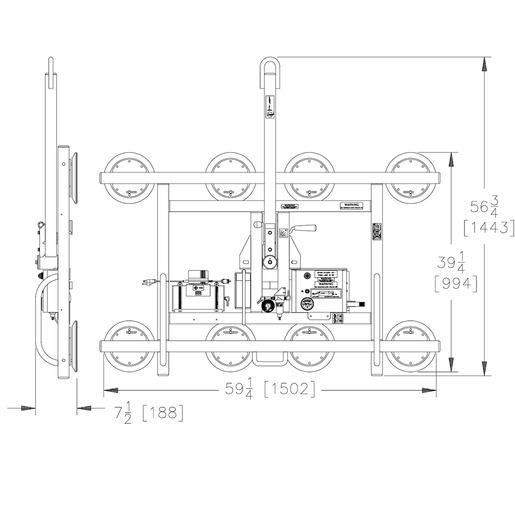

Standard Vacuum Pad Spread:
39-1/4" x 59-1/4" (994 mm x 1.50 m)

Number / Size of Vacuum Pads:
8/9" (229 mm) diameter vacuum pads

Load Capacity:
1000 lb. (455 kg)

Standard Operating Power:
12 volts DC, 10 amps

Alternative Power Systems:
AC power system (PFHL89AC) with blow-off for quick release
120 volts AC, 60 hertz, 4 amps Air (venturi) power system (PFHL89A1RS)

Load Movement:
Manual rotation, 180 degrees edgewise, with locking in three positions
Manual tilt, 90 degrees between upright and flat, with automatic latching in upright position
(Lifters can be tilted ONLY when lift bar is locked in center position.)

Standard Features:
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Vacuum gauge
Vacuum line filter
Vacuum reserve tank
Spring-mounted vacuum pads
