CRL Satin Anodized Bottom Door Patch with 1NT302 Insert

Item #: PH10DA
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov

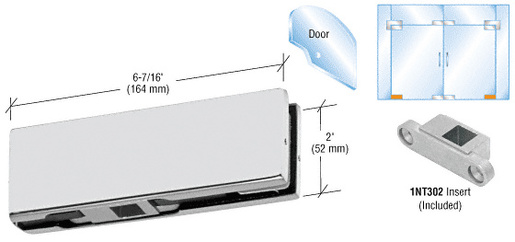

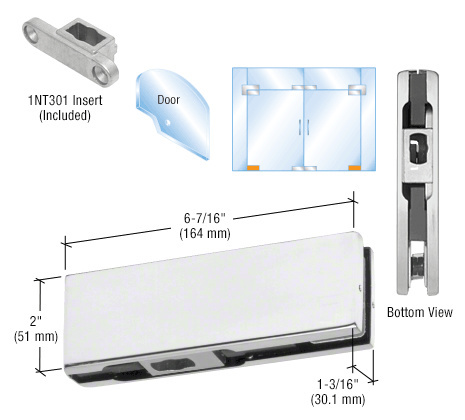

CRL Satin Anodized Bottom Door Patch with 1NT302 Insert
×
CRL Satin Anodized Bottom Door Patch with 1NT302 Insert
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized Bottom Door Patch with 1NT302 Insert Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 118
Dallas, Texas 1
Chicago (Elgin), Illinois 13
San Francisco/Oakland (Union City), California 2
Atlanta, Georgia 59
New York Area (Secaucus, New Jersey) 40
Boston (Taunton), Massachusetts 1
Orlando, Florida 1
Denver, Colorado 6/25/2024
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 6/24/2024
Philadelphia Area (Moorestown, New Jersey) 6/21/2024
Phoenix, Arizona 2
Las Vegas, Nevada 6/20/2024
Houston, Texas 6/21/2024
Miami, Florida 8
San Diego, California 2
Carolinas and Virginia, South Carolina 2
Product details
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Height
    2 in. (51 mm)
  • Insert Type
    1NT302
  • Length
    6-7/16 in. (164 mm)
  • Pivot Setback
    2-3/4
  • Type
    Bottom
  • With Insert
    Yes
Product Overview
  • 2-3/4" (70 mm) Pivot Setback
  • High Density Cast Body
  • For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.
