CRL Matte Black Bottom Door Patch with 1NT301 Insert

Item #: PH11CMBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Bottom Door Patch with 1NT301 Insert
×
CRL Matte Black Bottom Door Patch with 1NT301 Insert
Quantity Standard Price Sale Price Your Price
CRL Matte Black Bottom Door Patch with 1NT301 Insert Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1387
Product details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    3/8 in. (10 mm), 1/2 in. (12 mm)
  • Insert Type
    1NT301
  • Pivot Setback
    2-9/16 in. (65 mm)
  • Type
    Bottom
  • With Insert
    Yes
Product Overview
  • 2-9/16" (65 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass

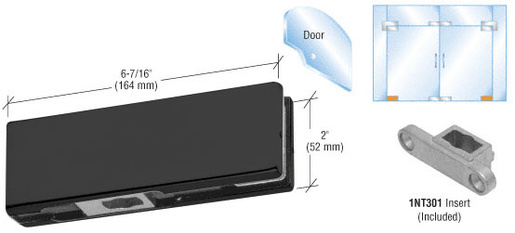

The CRL Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.


These Fittings are not for use with Laminated Glass

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.51 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions
