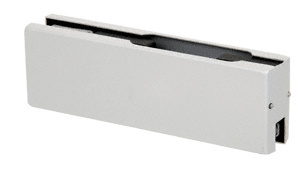

CRL Aluminum Top or Bottom Patch Fitting - Less Insert

Item #: AMR201A
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 14.4 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Aluminum Top or Bottom Patch Fitting - Less Insert
×
CRL Aluminum Top or Bottom Patch Fitting - Less Insert
Quantity Standard Price Sale Price Your Price
CRL Aluminum Top or Bottom Patch Fitting - Less Insert Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 919
Dallas, Texas 77
Chicago (Elgin), Illinois 70
San Francisco/Oakland (Union City), California 14
Atlanta, Georgia 57
New York Area (Secaucus, New Jersey) 104
Boston (Taunton), Massachusetts 38
Orlando, Florida 3
Denver, Colorado 22
Seattle (Kent), Washington 29
Cleveland (Solon), Ohio 6/24/2024
Philadelphia Area (Moorestown, New Jersey) 30
Phoenix, Arizona 5
Las Vegas, Nevada 13
Houston, Texas 6/21/2024
Miami, Florida 44
San Diego, California 2
Carolinas and Virginia, South Carolina 88
Product details
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Type
    Top or Bottom
  • With Insert
    No
Product Overview
  • For Use with Top and Bottom Inserts
  • High Density Cast Body
  • Gaskets for Use with 3/8" or 1/2" (10 or 12 mm) Glass

This CRL American T/B Door Patch (Less Insert will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.

For Use with Top and Bottom Inserts:
  • 1NT303 for top
  • 1NT301 for bottom

    Glass Fabrication Required:
  • One Corner Notch

    Includes:
  • High Density Cast Body
  • Cover Plates (Finish of Your Choice)
  • Gaskets for 3/8" or 1/2" (10 or 12 mm)
  • Template and Instructions

    Product Warning:

    These fittings are not for use with Laminated Glass.

    The following guidelines are to be used when making a 1/2" glass door using this hardware:

    Maximum Height: 102" (2.59 m)
    Maximum Height: 176 Lbs. (80 kg)
    Maximum Width: 42" (1.09 m)

    If the door exceeds any of these limitations, full door rails should be used.
