CRL Black Bronze European Top Door Patch Fitting with 1NT303 Insert

Item #: PH21ADU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Black Bronze European Top Door Patch Fitting with 1NT303 Insert
×
CRL Black Bronze European Top Door Patch Fitting with 1NT303 Insert
Quantity Standard Price Sale Price Your Price
CRL Black Bronze European Top Door Patch Fitting with 1NT303 Insert Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 110
Dallas, Texas 12
Chicago (Elgin), Illinois 3
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 7/29/2024
New York Area (Secaucus, New Jersey) 7/29/2024
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 2
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 7/30/2024
Cleveland (Solon), Ohio 1
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 1
Las Vegas, Nevada 3
Houston, Texas 7/26/2024
Miami, Florida 3
San Diego, California 7/24/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Finish/Color:
    Black Bronze Anodized
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Height
    2 in. (51 mm)
  • Insert Type
    1NT303
  • Length
    6-7/16 in. (164 mm)
  • Pivot Setback
    2-9/16
  • Series
    European
  • Type
    Top
  • With Insert
    Yes
Product Overview

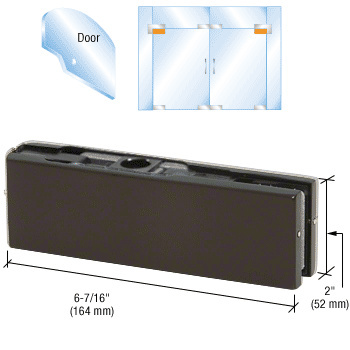

  • 2-9/16" (65 mm) Pivot Setback
  • High Density Cast Body
  • For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Top Door Patch Fitting includes the 1NT303 Insert for use with our CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) Diameter type pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 43" (1.11 m)
If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
