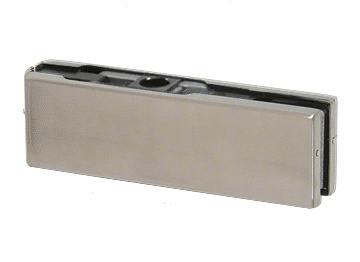

CRL Oil Dynamic Top Door Patch Fitting Hinge Body

Item #: H100E20
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.66 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Oil Dynamic Top Door Patch Fitting Hinge Body
×
CRL Oil Dynamic Top Door Patch Fitting Hinge Body
Quantity Standard Price Sale Price Your Price
CRL Oil Dynamic Top Door Patch Fitting Hinge Body Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 25
Dallas, Texas 1
Chicago (Elgin), Illinois 7/26/2024
San Francisco/Oakland (Union City), California 3
Atlanta, Georgia 10
New York Area (Secaucus, New Jersey) 12
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 14
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 7/29/2024
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 7/25/2024
Las Vegas, Nevada 7/25/2024
Houston, Texas 1
Miami, Florida 4
San Diego, California 7/24/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Adjustable Closing Speed
    Yes
  • Height
    2-3/16 in., 6-9/16 in. (56 mm, 167 mm)
  • Works With
    H100ECBS
Product Overview
  • Door Patch Body Only - Cladding Purchased Separately
  • Suitable for 8 mm to 13.52 mm Toughened Glass Doors Bullet 3: Slim Line Design - 56 mm High Bullet 4: For Interior and Exterior Applications Bullet 5: 2-9/16" (65 mm) Pivot Setback
  • Slim Line Design - 56 mm High
  • For Interior and Exterior Applications
  • 2-9/16" (65 mm) Pivot Setback

The CRL Top Door Patch Fitting includes gaskets which allow this Patch Fitting to be used with 8 mm to 13.52 mm toughened glass. These fittings can be combined with the CRL Oil Dynamic Patch Fitting Door Hinge (Cat. No. H100E10).

NOTE: Requires a 12 mm top pivot pin. See Cat. No. H100EP1V.

Available with three finishes of cladding, which is purchased separately using the following catalog numbers:

Cat. No. H100ECBS – Brushed Stainless Steel
Cat. No. H100ECPS – Polished Stainless Steel
Cat. No. H100ECSA – Satin Anodized

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
