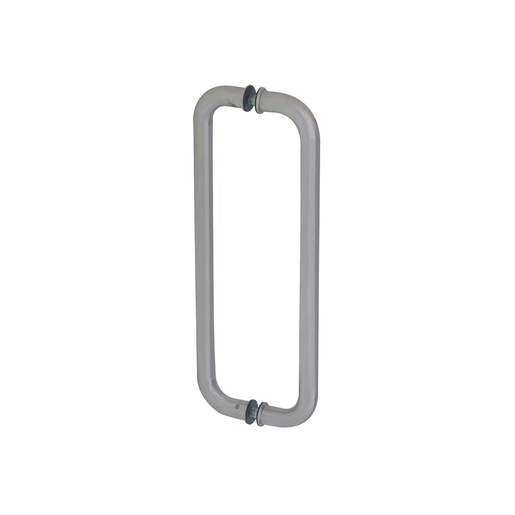

CRL Brushed Stainless 12" Solid Glass Mounted Standard Pull Handle

Finish/Color : Brushed Stainless Steel
Item #: CS12X12BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.998 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless 12" Solid Glass Mounted Standard Pull Handle
×
CRL Brushed Stainless 12" Solid Glass Mounted Standard Pull Handle
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless 12" Solid Glass Mounted Standard Pull Handle Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 12
Dallas, Texas 1
Chicago (Elgin), Illinois 17
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 7
New York Area (Secaucus, New Jersey) 3
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 4
Denver, Colorado 1
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 7/1/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/27/2024
Las Vegas, Nevada 8
Houston, Texas 6
Miami, Florida 5
San Diego, California 6/26/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/8 in. To 3/4 in. (10 mm To 19 mm)
  • Mounting Center To Center
    12 in. (305 mm)
  • Mounting Hole Diameter
    5/8 in. (16 mm)
  • Mounting Type
    Back-to-Back
  • Style Washer Diameter
    1-1/4 in. (32 mm)
  • Style Washers
    Yes
Product Overview
  • For Use with 3/8" to 3/4" (10 to 19 mm) Thick Glass
  • 1" (25 mm) Diameter Solid Stainless Steel or Brass
  • Use Monolithic Tempered Glass

This CRL Glass Mounted Standard Pull Handle is available in several sizes and finishes.

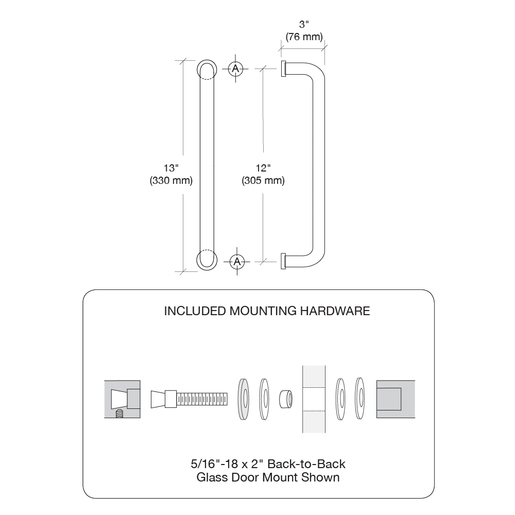

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Round Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes

INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets

Product Warning:

NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
