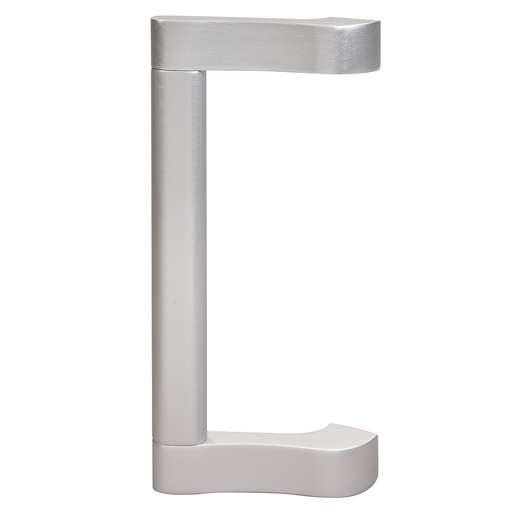

CRL Satin Anodized Extruded Aluminum Pull Handle

Finish/Color : Satin Anodized
Satin Anodized
Item #: DL915A
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.31 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Anodized Extruded Aluminum Pull Handle
×
CRL Satin Anodized Extruded Aluminum Pull Handle
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized Extruded Aluminum Pull Handle Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 509
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    Satin Anodized
  • Material
    Aluminum
  • Mounting Center To Center
    10 in. (254 mm)
  • Mounting Type
    Single Sided
  • Overall Length
    11-1/8 in. (283 mm)
  • Projection
    4-1/4 in. (108 mm)
Product Overview
  • 10" (254 mm) Center-to-Center
  • Solid Extruded Aluminum Handle Mounts to Door with Concealed Fasteners

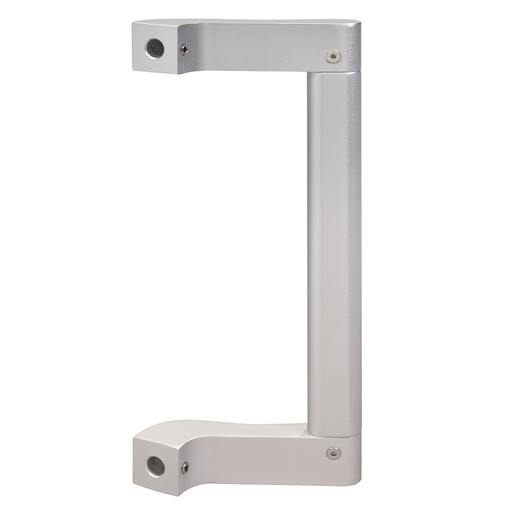

The CRL Extruded Aluminum Pull Handle comes with two studs that are tapped (1/4-20 thread) into the aluminum door frame on 10" (254 mm) centers. Then the handle is slipped over the studs and secured with Allen screws to provide concealed fastener look. Available in choice of satin anodized and dark bronze finishes.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

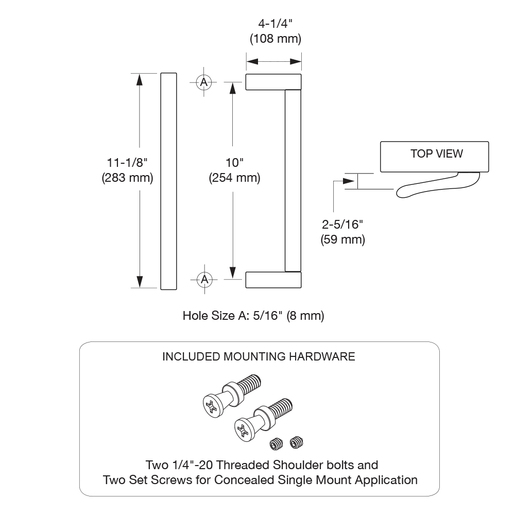

Technical References & CAD Drawings
