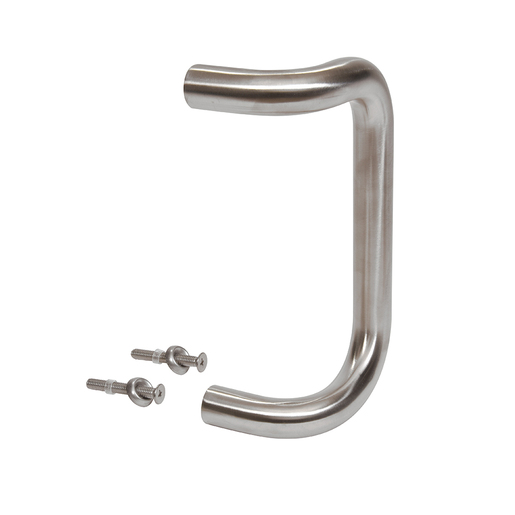

CRL 8" Brushed Stainless Solid Offset Pull Handle

Finish/Color : Brushed Stainless Steel
Item #: M174832D
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.11 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 8" Brushed Stainless Solid Offset Pull Handle
×
CRL 8" Brushed Stainless Solid Offset Pull Handle
Quantity Standard Price Sale Price Your Price
CRL 8" Brushed Stainless Solid Offset Pull Handle Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 2
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Diameter
    1 in. (25 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Material
    Stainless Steel
  • Mounting Center To Center
    8 in. (203 mm)
  • Mounting Type
    Single Sided
Product Overview
  • Single-Sided Solid Handle in Two Sizes
  • Available in Several Finishes
  • 1" (25 mm) Diameter Solid Stainless Steel

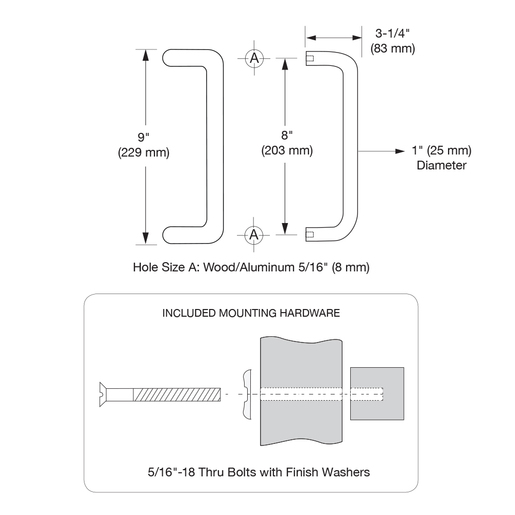

CRL 1" (25.4 mm) Diameter Solid Offset Pull Handles have an overall projection height of 3-1/4" (83 mm), and an offset clearance of 2-1/4" (57 mm). They are supplied with two, 5/16"–18 thru-bolts and finish washers. All Offset Pulls are packed individually.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
