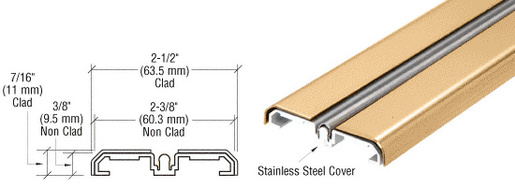

CRL Polished Brass SSR Bottom Rolling Sliding Door System XO/OX

 Discontinued item. All sales are final.
No longer available.
Finish/Color : Polished Brass
Gloss Black
Brushed Stainless Steel
Dark Bronze Anodized
Polished Brass
Polished Stainless
Satin Anodized
Satin Brass
Item #: SSR2CPB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Brass SSR Bottom Rolling Sliding Door System XO/OX
×
CRL Polished Brass SSR Bottom Rolling Sliding Door System XO/OX
Quantity Standard Price Sale Price Your Price
CRL Polished Brass SSR Bottom Rolling Sliding Door System XO/OX Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Related Products
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Door Configuration
    XO/OX
  • Finish/Color:
    Polished Brass
  • Height
    4 in. (102 mm)
  • Material
    Aluminum
  • Maximum Door Height
    108 in. (2743 mm)
  • Maximum Door Width
    48 in. (1219 mm)
  • Minimum Door Width
    234 in. (5944 mm)
Back to Top
Product Overview
  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

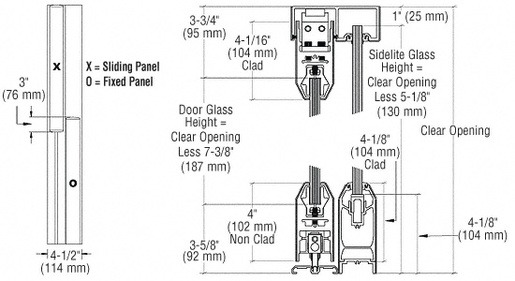

The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4T Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.


The fixed panels utilize our popular SR4T Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Back to Top
Technical References & CAD Drawings
Installation Instructions
SSR Bottom Rolling Sliding Door System Installation Instructions
Specifications
Sliding Door System Specifications
CAD Drawings - pdf
SDR SSR Bottom Rolling Sliding Door System CAD Drawings.pdf
CAD Drawings - dwg
SDR SSR Bottom Rolling Sliding Door System CAD Drawings.dwg
Cleaning & Maintenance
Brass Finish Disclaimer
