CRL 316 Polished Stainless Double Roller Laguna Series Wall Mount Single Slider Kit

Finish/Color : Polished Stainless Steel
Item #: LSWM25PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Polished Stainless Double Roller Laguna Series Wall Mount Single Slider Kit
CRL 316 Polished Stainless Double Roller Laguna Series Wall Mount Single Slider Kit
Quantity Standard Price Sale Price Your Price
CRL 316 Polished Stainless Double Roller Laguna Series Wall Mount Single Slider Kit Stock
Los Angeles, California 21
Dallas, Texas 4
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 3
Atlanta, Georgia 7/23/2024
New York Area (Secaucus, New Jersey) 1
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 7/30/2024
Denver, Colorado 7/23/2024
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 1
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 7/25/2024
Las Vegas, Nevada 7/25/2024
Houston, Texas 7/23/2024
Miami, Florida 4
San Diego, California 7/24/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Anti-Lift
  • Door Attachment
  • Door Configuration
    Double Door
  • Finish/Color:
    Polished Stainless Steel
  • Glazing Thickness
    3/8 in. (10 mm), 1/2 in. (13 mm)
  • Glazing Type
    Tempered Insulated
  • Material
    316 Stainless Steel
  • Maximum Door Height
    98-7/16 in. (2500 mm)
  • Maximum Panel Weight
    220 lbs. (100 kg)
  • Minimum Door Width
    37-13/16 in. (960 mm)
  • Mounting Application
  • Self-Closing
  • Track Diameter
    1-1/4 in. (32 mm)
  • Track Length
    104 in. (2642 mm)
Product Overview
  • This Kit Intended for Wall Mounting
  • Improved Anti-Lift Double Roller Design
  • Alloy 316 Stainless Steel Construction
  • Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass

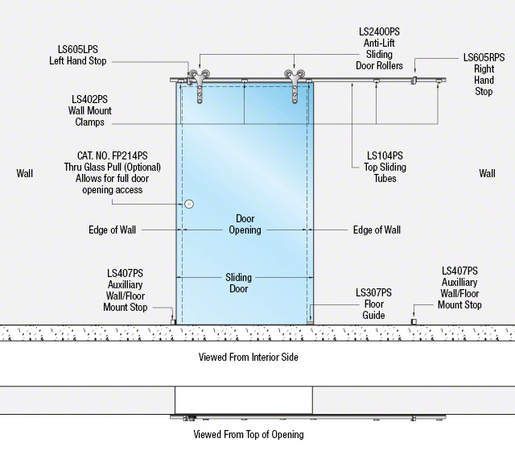

The CRL Double Roller Laguna Series Wall Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.

The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.

Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
