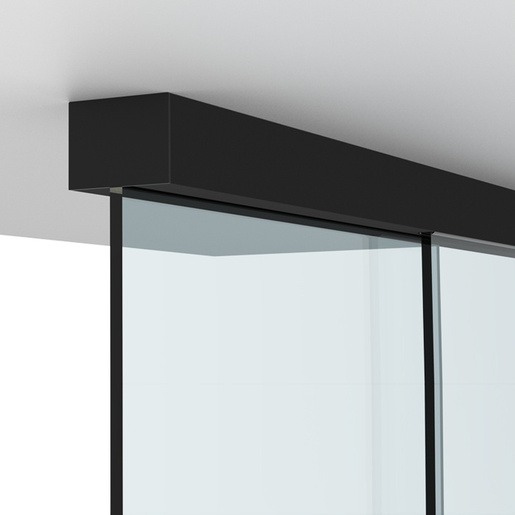

CRL 690 Series Matte Black Wall/Ceiling Mount Sliding Door with Fixed Panel Kit

Finish/Color : Matte Black
Item #: CRL6901MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 690 Series Matte Black Wall/Ceiling Mount Sliding Door with Fixed Panel Kit
×
CRL 690 Series Matte Black Wall/Ceiling Mount Sliding Door with Fixed Panel Kit
Quantity Standard Price Sale Price Your Price
CRL 690 Series Matte Black Wall/Ceiling Mount Sliding Door with Fixed Panel Kit Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 29
Dallas, Texas 6/25/2024
Chicago (Elgin), Illinois 2
San Francisco/Oakland (Union City), California 6/20/2024
Atlanta, Georgia 6/24/2024
New York Area (Secaucus, New Jersey) 3
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 6/25/2024
Denver, Colorado 6/25/2024
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 6/25/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 6/20/2024
Houston, Texas 6/25/2024
Miami, Florida 6/25/2024
San Diego, California 6/24/2024
Carolinas and Virginia, South Carolina 6/25/2024
Product details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    3/8 To 1/2 in. (10 To 12 mm)
  • Track Length
    118 in. (3000 mm)
Product Overview
  • Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
  • Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered Glass

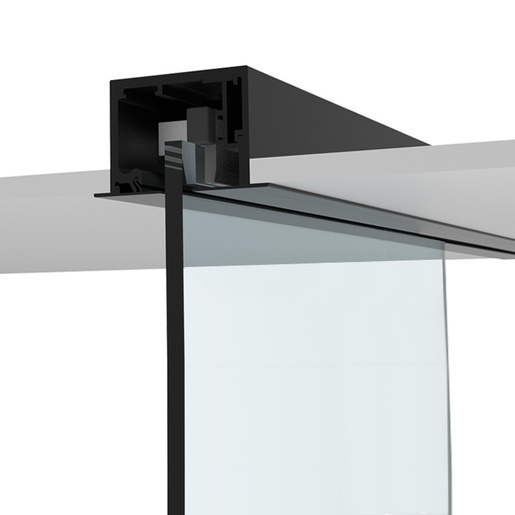

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.

Minimum sliding panel width of 23-5/8" (600 mm). Existing CRL690 Series installations can be easily upgraded to CRL695 Series by ordering CRL695SBK Softbrake kits, minimum door panel width 34-1/4" (870 mm).

Kit Contains:
  • 118" (3m) of CRL4930EXT Track kit
  • 1 Set CRL6939 Top Hangers
  • 1 Set CRL6942 Roller Stops
  • 1 Set CRL4937 End Caps
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL290TF Top Track Insert Fasteners
  • 1 Each CRL Bottom Guide

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

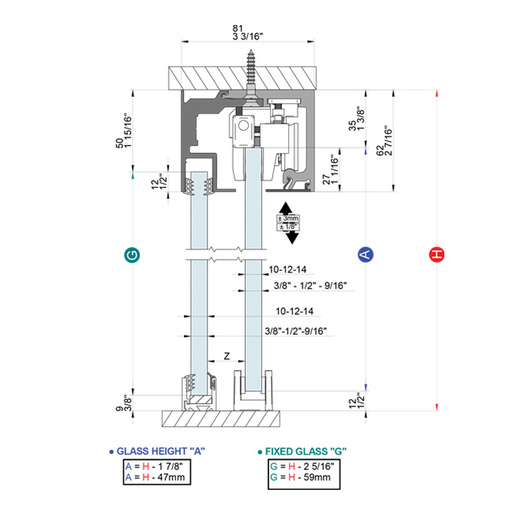

  • Technical References & CAD Drawings
