CRL Brushed Stainless Anodized Bottom Channel for Fixed Glass

 Limited stock available. This item will be discontinued. All sales are final.
Finish/Color : Brushed Stainless Anodized
Brushed Stainless Anodized
Item #: CRL3979BSA
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.213 Pounds
Shipping Limitations : Requires Cutting Instructions for UPS
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless Anodized Bottom Channel for Fixed Glass
×
CRL Brushed Stainless Anodized Bottom Channel for Fixed Glass
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless Anodized Bottom Channel for Fixed Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California In Other Service Center
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California In Other Service Center
Atlanta, Georgia 2
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts In Other Service Center
Orlando, Florida In Other Service Center
Denver, Colorado In Other Service Center
Seattle (Kent), Washington In Other Service Center
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) In Other Service Center
Phoenix, Arizona In Other Service Center
Las Vegas, Nevada In Other Service Center
Houston, Texas In Other Service Center
Miami, Florida In Other Service Center
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina In Other Service Center

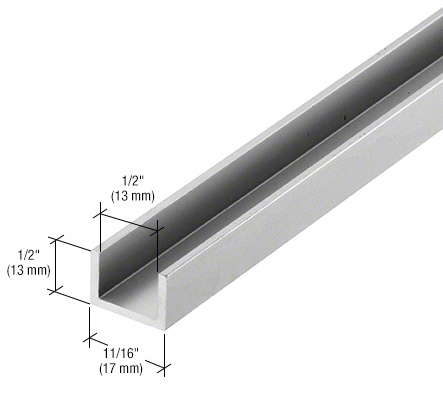

Product details
  • Finish/Color:
    Brushed Stainless Anodized
  • Glazing Thickness
    5/16 in., 3/8 in., 1/2 in. (8 mm, 10 mm, 12 mm)
  • Height
    1/2 in. (13 mm)
  • Length
    118 in. (2997 mm)
  • Width
    11/16 in. (17 mm)
Product Overview
  • For Use with 5/16" to 1/2" (8 to 12 mm) Tempered Glass
  • Use Monolithic Tempered Glass

This CRL Bottom Channel for Fixed Glass is used to capture the fixed glass panel at the floor. For use with 5/16", 3/8" or 1/2" (8, 10 or 12 mm) tempered glass. Provides a sleek, finished look. Made of aluminum with a satin anodized finish, it comes in 118" (3 m) stock lengths. For use with CRL50/51, CRL70, and CRL285 Series Sliding Door Systems. Must ship common carrier, unless you specify we cut them for U.P.S. A cutting charge will apply.

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
